Description

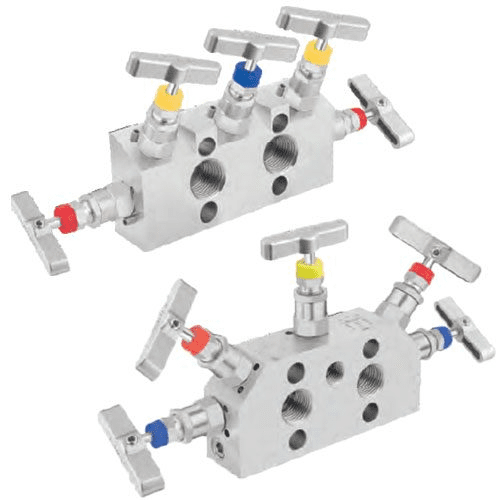

MVA 5-HANDLE ANGULAR 316SS 1/2″ NPT F x 1/2″ NPT F DIRECT MOUNT, HARD, PTFE, 10000 PSI
DESCRIPTION & FEATURES
- Compact, wafer design for direct mounting.
- Rugged design for use with differential pressure transmitters and impulse lines.
- 5-handle configuration: two isolation valves, one equalizing valve, and two vent valves.
- Straight and angled patterns to suit all installation needs.
- Available in various construction options to handle diverse media requirements.
- Soft and hard seat options; pressure rated for 6,000 psi and 10,000 psi.
- PTFE packing standard, with optional Graphoil for enhanced sealing.
- CRN available upon request.
- 5-year warranty included.
APPLICATIONS
- Compatible with Winters LY36 Series and other differential transmitters (requires M10x45 bolts).
- Essential for industrial and process environments, providing shutdown capabilities for testing, repair, and upgrades of instruments.
SPECIFICATIONS
Feature | Details |
---|---|
Part Number | MVA5ASH2D |
Connection | 1/2″ NPT F x 1/2″ NPT F Direct Mount |
Handles | Straight or Angled |
Material | 316 Stainless Steel |
Seat Type | Hard Seat |
Packing Material | PTFE or Graphoil |
Max Pressure | 10,000 psi |
