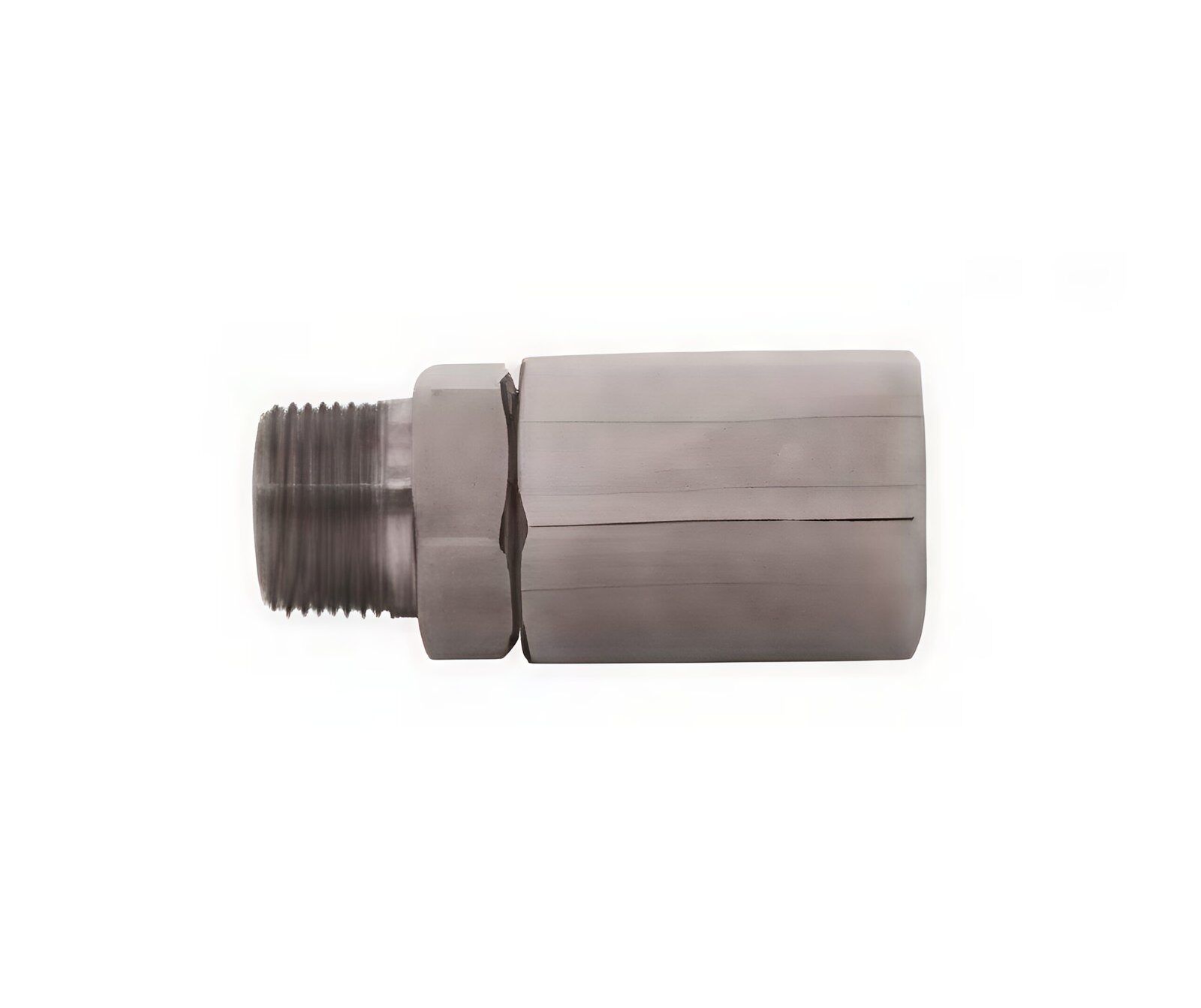

NS5405 Male NPT Stem x Female NPT Straight Live Swivel ELITE USA
732.00$
Part No: NS5405
NS5405 Male NPT Stem x Female NPT Straight Live Swivel ELITE USA
Heavy-duty 1″ NPT live swivel made from zinc-plated steel, rated up to 3000 PSI for oil-based systems. Designed for aggressive temperature ranges with Buna-N seals, this component is ideal for applications requiring limited rotational movement but not high RPMs. Stainless and high-pressure options available for corrosive or demanding conditions.
Description
NS5405 Male NPT Stem x Female NPT Straight Live Swivel ELITE USA
1″ Male NPT Stem x 1″ Female NPT Straight Live Swivel, Zinc-Plated Steel, PN: NS5405-16-16NS5405
| Specification | Details |
|---|---|
| Part Number | NS5405 |
| Product Type | Straight Live Swivel |
| End Connection | 1″ Male NPT x 1″ Female NPT |
| Material | Zinc-Plated Steel |
| Pressure Rating | Up to 3000 PSI (Oil Service) |
| Temperature Range | -40°C (-40°F) to +93°C (+200°F) |
| Seal Material | Standard Buna-N |
| Corrosion Resistance | Not suitable for water service; stainless steel version available |
| Application Notes | For aggressive service environments; not for high RPM use |
| Stainless Steel Option | Available under part series NSBxxxx-xx-xxSS |
| Higher Pressure Option | Available on request (3500–5000 PSI, NSB series) |
| Ideal Use | Heavy-duty oil applications; moderate rotational motion |
| Not Recommended For | Water service, high RPM or high-frequency applications |
