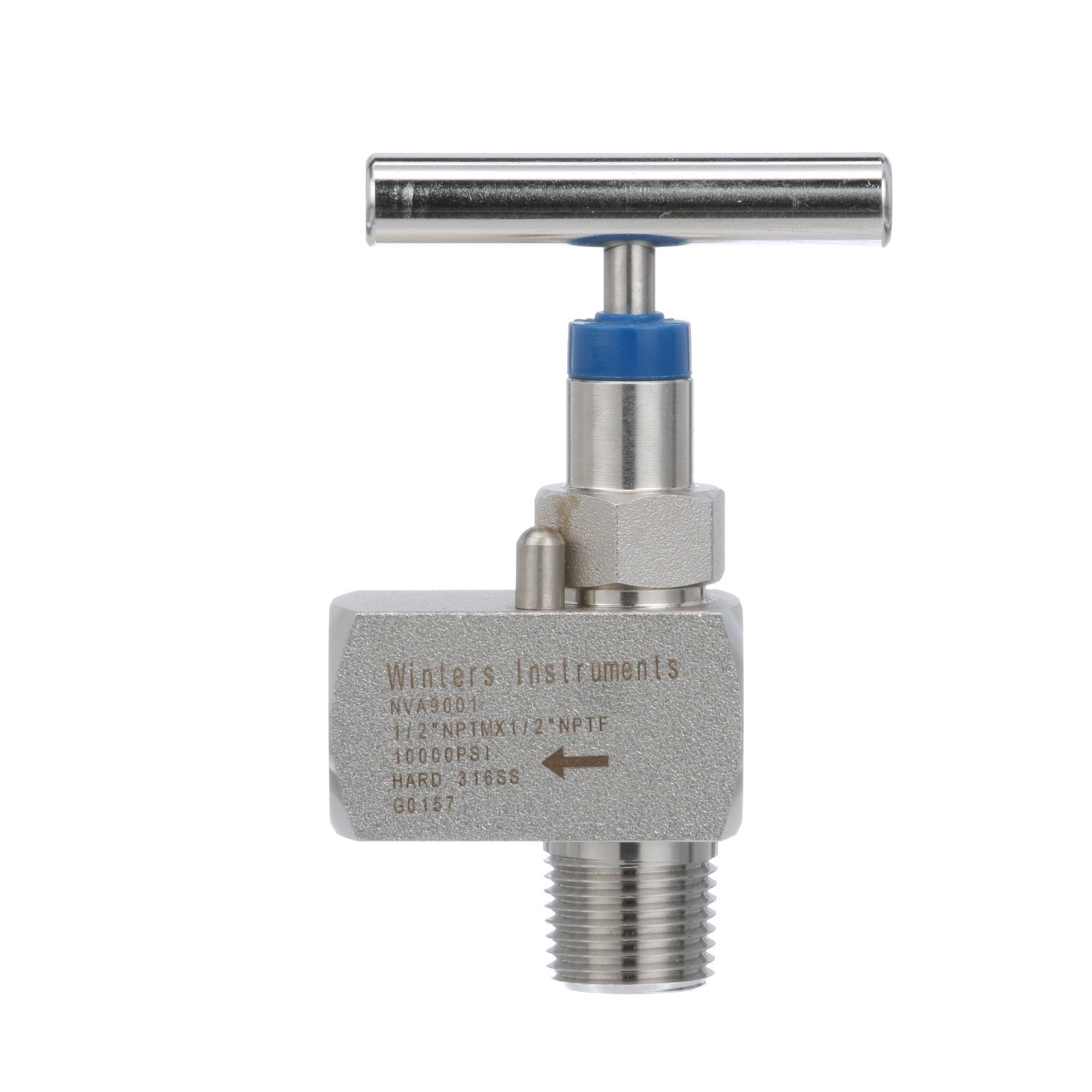

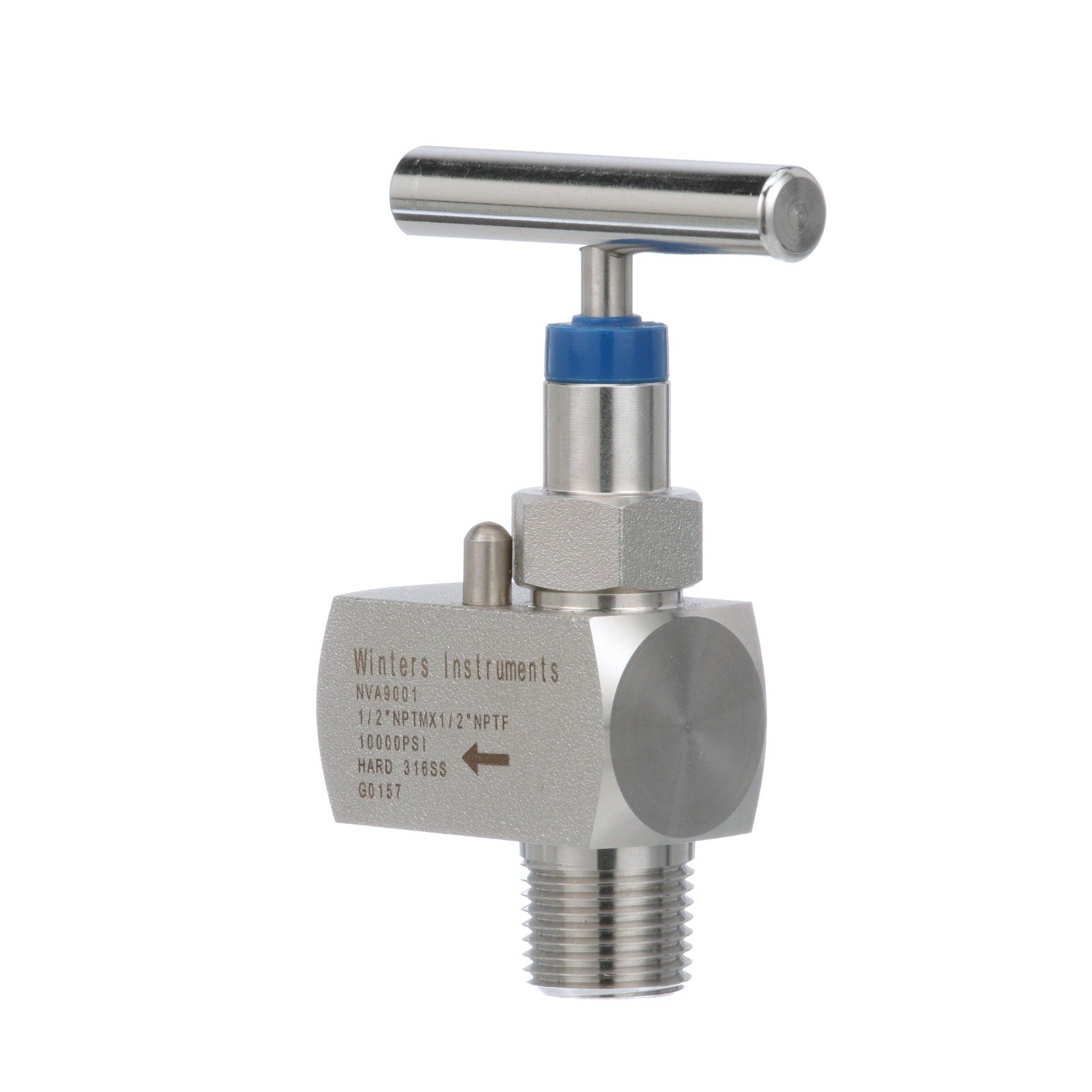

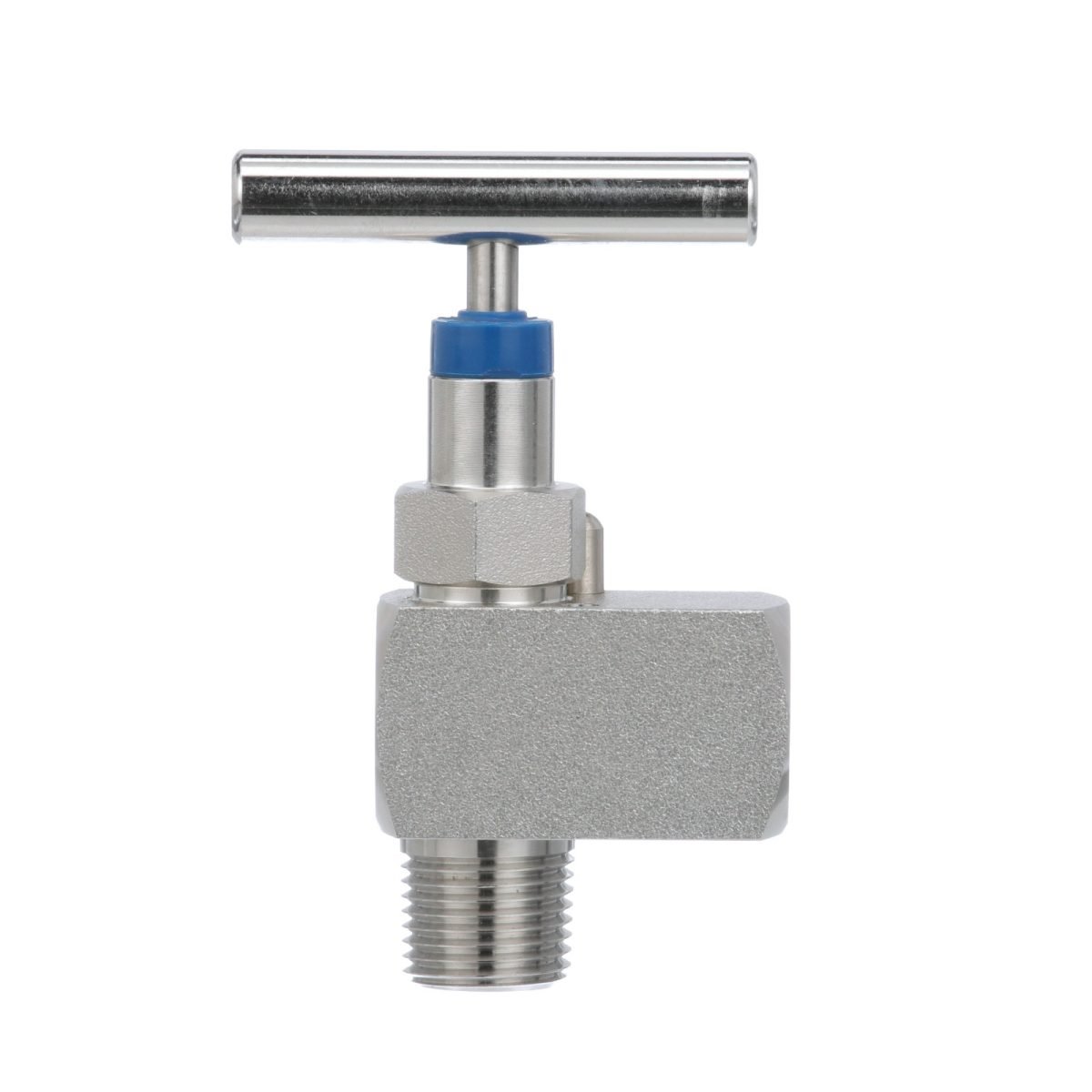

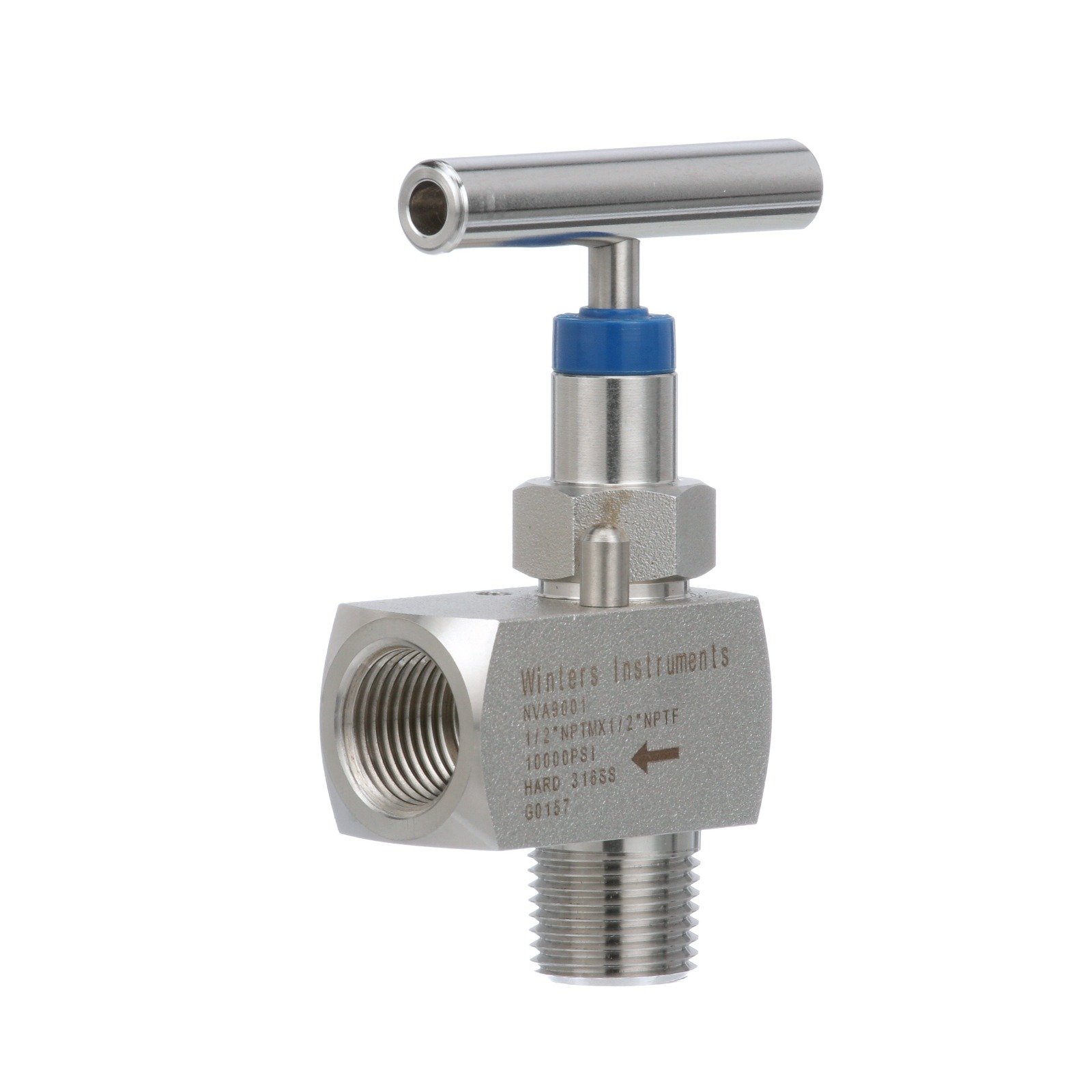

NVA Needle Valve (ANGLE BODY, HARD SEAT) NVA8004 WinSMART™

$248.00

Part No: NVA8004
NVA Needle Valve (Angle Body, Hard Seat) – 6,000 psi rating, stainless steel construction, PTFE/Graphite packing, and slow opening feature for leak-tight flow regulation.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

NVA Needle Valve NVA8004 NVA, SS, 3/8″ M x 3/8″ FNPT, ANG, HARD, 6K
The NVA Needle Valve offers excellent flow regulation and leak-tight performance. Its one-piece body construction, with no welding, provides superior strength, safety, and corrosion resistance. The “slow opening” design prevents sudden pressure surges that could damage instruments. Made from stainless steel and stainless steel NACE materials, this valve is available in a hard seat configuration and can handle pressures up to 6,000 and 10,000 psi. It complies with ASME B1.20.1 and is CRN registered, with a 5-year warranty. Ideal for severe-duty applications in oil and gas refineries, power plants, water treatment, and hydraulic systems.

DESCRIPTION & FEATURES

  • Excellent flow regulation and leak-tight
  • One-piece body construction (no welding) for strength, safety, and corrosion resistance
  • “Slow opening” prevents sudden pressure surge and instrument damage
  • Made from stainless steel and stainless steel NACE materials
  • Available in Hard Seat (6,000 and 10,000 psi)
  • ASME B1.20.1 compliant
  • CRN registered
  • 5-year warranty

Applications
The NVA Needle Valve is ideal for severe-duty oil and gas installations, refineries, processing plants, power plants, water treatment plants, and hydraulic applications.

Specifications Table:

Body Carbon Steel Carbon Steel 316 SS 316 SS NACE
Bonnet Carbon Steel Carbon Steel 316 SS 316 SS NACE
Adapter Locknut Carbon Steel Carbon Steel 304 SS 304 SS
Adapter 316 SS 316 SS NACE 316 SS 316 SS NACE
Dustcap Nylon Nylon Nylon Nylon
Handle Carbon Steel Carbon Steel 304 SS 304 SS
Screw 304 SS 304 SS 304 SS 304 SS
Fastening Screw 304 SS 304 SS 304 SS 304 SS
Needle/Needle Tip 316 SS 316 SS NACE 316 SS 316 SS NACE
Gland Washer Carbon Steel Carbon Steel 304 SS 304 SS
Gland Packing PTFE / Graphite PTFE / Graphite PTFE / Graphite PTFE / Graphite
Dwell Pin Carbon Steel Carbon Steel 304 SS 304 SS
