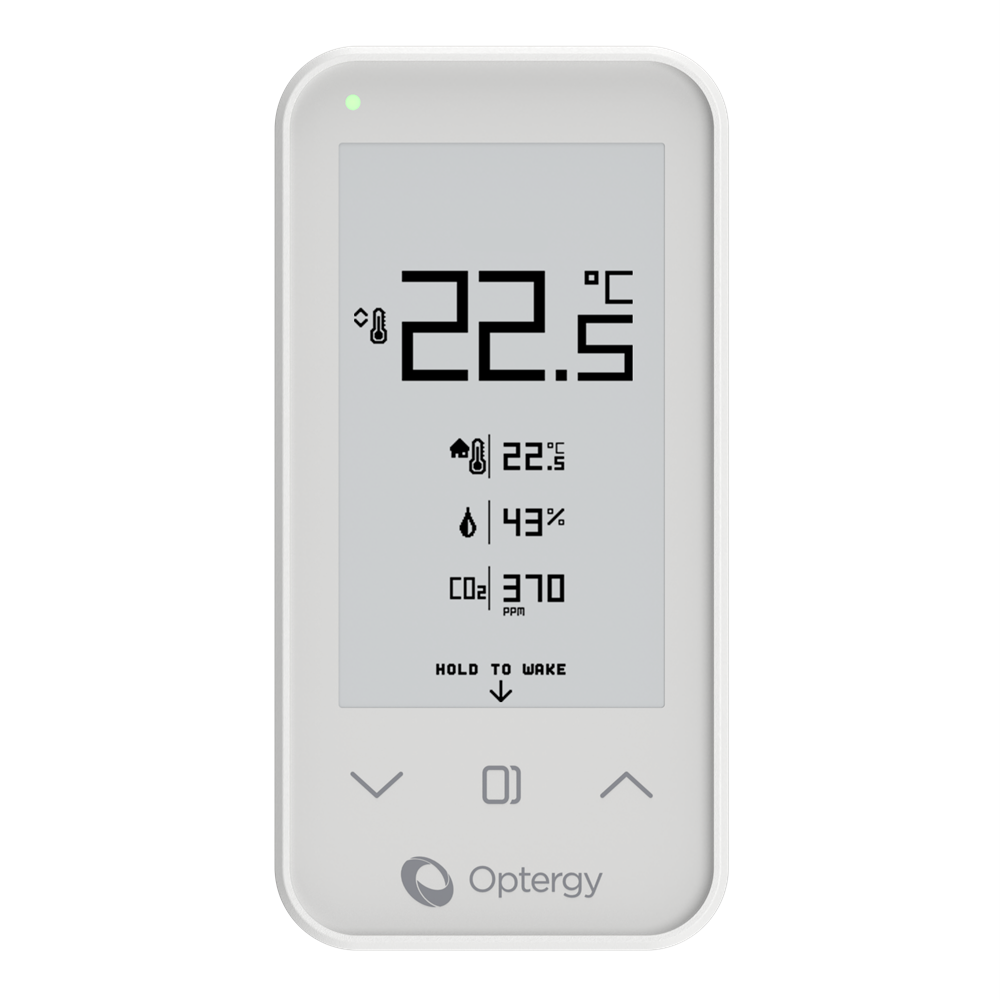

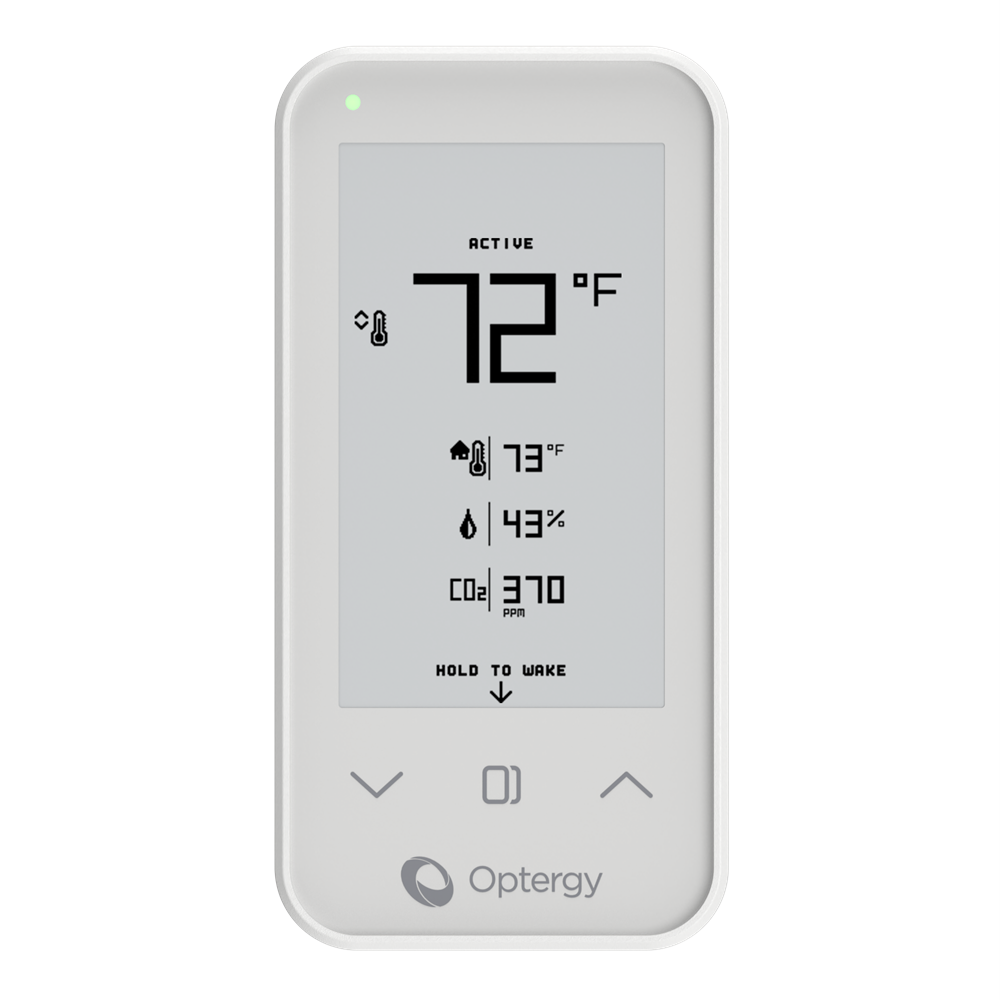

Optergy Air Touch Wireless Interface Sensor – Part No. BW-INT-W | Optergy
The Optergy Air Touch Wireless Interface Sensor is a state-of-the-art device designed to enhance building management systems by providing accurate and reliable temperature and humidity monitoring. This sensor is equipped with integrated temperature and humidity sensors, and it can display CO2 and outside air temperature from networked sensors, offering a comprehensive solution for building owners and operators.
With its sophisticated, sleek design and user-friendly interface, the Optergy Air Touch makes it easy to install and start benefiting from optimized zone control. It is powered by three 3.6V lithium batteries (not included), ensuring a reliable five-year minimum battery life, reducing the need for regular maintenance and enhancing the overall efficiency of building operations.
Key Features:
-
Wireless: Easily connects to the Optergy Air Transceiver (BG-1000-M) for seamless operation.
-
Multi-Sensor Support: Can connect to up to seven sensors for enhanced monitoring.
-
Temperature & Humidity Control: Provides accurate temperature (°F or °C) and humidity (%rH) readings.
-
CO2 and Outside Air Monitoring: Displays CO2 levels (ppm) and outside air temperature (°F or °C) from connected sensors.
-
Low Maintenance: Powered by three 3.6V lithium batteries, providing at least five years of battery life.
-
Easy Installation: Designed for quick installation, reducing downtime during setup.
BACnet Points Include:
The following BACnet points are available with the Optergy Air Touch Wireless Interface Sensor:
| Point Name | Description |
|---|---|
| Temperature Value | Measures temperature in °F or °C |
| Humidity Value | Measures relative humidity in %rH |
| Temperature Setpoint | Adjustable temperature setpoint in °F or °C |
| Transmitted CO2 Value | CO2 level in ppm |
| Transmitted Outside Air Temperature | Outside air temperature in °F or °C |
| Battery Level | Indicates the current battery percentage |
| Low Battery Level Warning | Alerts when the battery is low |
| Sensor Online | Indicates the status of the sensor |
| Sensor Detected | Confirms if the sensor is properly detected |
| Additional options available | Customizable points to meet specific needs |
The Optergy Air Touch is the ideal solution for building owners looking to leverage smart building technology with minimal maintenance and reliable performance. Whether you’re looking to monitor a single room or an entire building, this wireless sensor provides the flexibility and accuracy required for optimal environmental control.
