Parker SAE Straight Flange Adapter AS66/48.3x8S
$ 95
Part No: AS66/48.3x8S

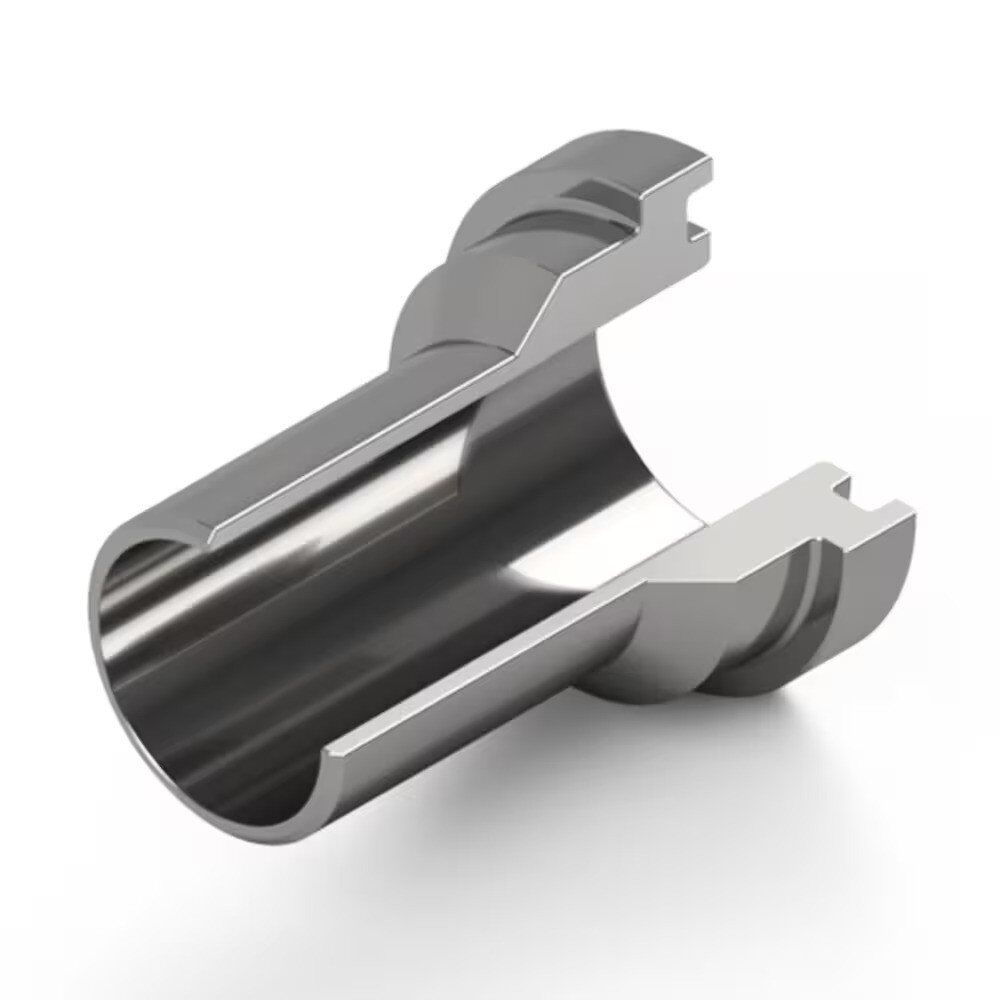

SAE Straight Flange Adapter AS66/48.3x8S Parker
1 1/2″ SAE 6000 flange, 48.3×8.0 mm tube butt weld adapter. Made from oil-dipped steel with a pressure rating of 420 bar. ISO 6162-2 compliant for leak-free high-pressure hydraulic connections.
Description
SAE Straight Flange Adapter AS66/48.3x8S Parker
Steel, oil-dipped, butt weld connection, 1 1/2″ SAE 6000 flange, for 48.3×8.0 mm tube. Pressure rated to 420 bar. Designed to ISO 6162-2 standards for high-pressure, leak-free hydraulic connections in confined spaces.
Steel, 1 1/2″ SAE 6000 Flange, 48.3×8 Tube Butt Weld, Body Only
| Part Number | AS66/48.3x8S |
|---|---|
| Product Description | SAE Straight Flange Adapter |
| Brand | Parker |
| Flange Size | 1 1/2″ SAE 6000 |
| Tube Size | 48.3 × 8.0 mm |
| Material | Steel, oil dipped |
| Pressure Rating | 420 bar |
| Flange Type | Straight Flange |
| Connection Type | Butt Weld |
| Standards | ISO 6162-2 / SAE J518 Code 62 |
| Assembly Includes | Body only |
| Port Type | 4-bolt SAE 6000 (ISO 6162-2) |
| Application | Hydraulic & industrial pipe connections |
| Seal Type | O-ring face seal |
| Industry Usage | Mobile, Marine, Industrial, Power Gen |
