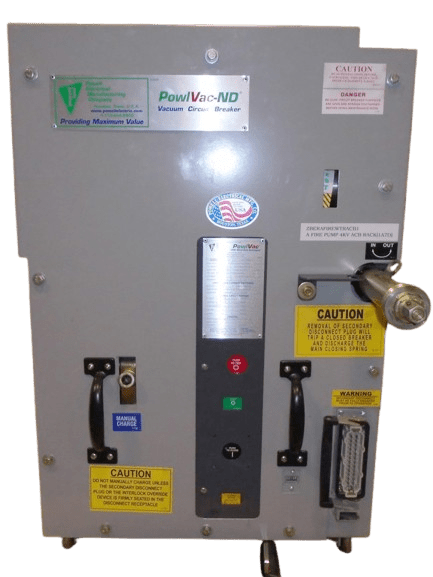

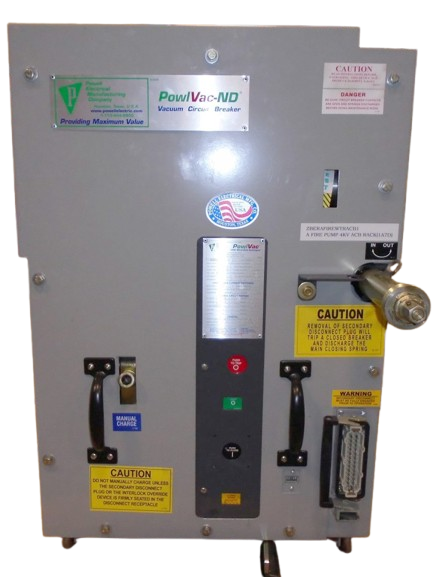

POWELL 05PV36SNDX‑11CCEXX01 Vacuum Circuit Breaker
$ 51,950Each
Lead Time : 30‑32 Weeks
Ex-Works : USA
Key Features
-
Engineered for dependable medium voltage protection and switching up to 5 kV
-
High interrupting rating of 36 kAIC to safeguard critical electrical distribution networks
-
Electrically operated draw‑out design simplifies maintenance and replacement
-
Integrated trip and close coils with additional charge motor for reliable operations
-
Ideal for PowlVac switchgear installations where performance and serviceability are essential
POWELL 05PV36SNDX‑11CCEXX01 Vacuum Circuit Breaker
The Powell 05PV36SNDX‑11CCEXX01 is a medium voltage vacuum circuit breaker engineered for high‑reliability power distribution and protection in industrial and utility electrical systems. Designed as part of Powell’s proven PowlVac switchgear portfolio, this breaker delivers robust interruption performance at 5 kV with a 36 kA interrupting rating and 1200 A frame, making it suitable for heavy‑duty applications such as plant power centers, industrial substations, and critical infrastructure. It incorporates integral trip and close coils along with a draw‑out mechanism for ease of maintenance and safe operation.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | POWELL |
| Product Type | Medium Voltage Vacuum Circuit Breaker |
| Part Number | 05PV36SNDX‑11CCEXX01 |
| Function | Electrical protection and switching in medium voltage systems |
| Application | Industrial and utility power distribution |
| Rated Voltage | 5 kV Class (approx. 4.76 kV nominal) |
| Rated Current | 1200 A |
| Interrupting Capacity | 36 kAIC |
| Operating Mechanism | Electrically operated draw‑out type |
| Trip Coil | 125 VDC |
| Close Coil | 125 VDC (with 120 VAC charge motor) |
| Mounting | Draw‑Out (for switchgear integration) |
| Compatible Systems | PowlVac medium voltage switchgear |
| Operating Cycles | 3‑Cycle standard |
| Category | Accessories/Spare parts for switchgear |
| Environmental Rating | Designed for industrial electrical room conditions |
| Insulation Medium | Vacuum Interrupters |
