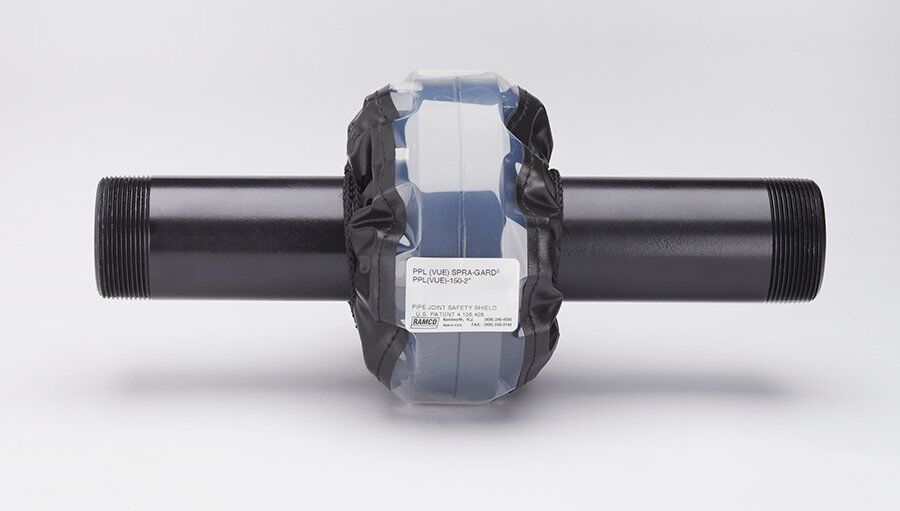

RAMCO PPL Vue-Gard Safety Shield DN200 PPL(VUE)-PN16-DN200
$ 115
Part No: PPL(VUE)-PN16-DN200
Ex-Works: Arizona, USA
Lead Time: 3 weeks
-
Designed for chemical handling, especially hydrofluoric acid
-
Transparent construction for quick inspection
-
Withstands high temperatures and pressures
-
Optional drain port for added containment
RAMCO PPL Vue-Gard Safety Shield DN200 PPL(VUE)-PN16-DN200
The RAMCO PPL Vue-Gard Safety Shield is a high-performance protective barrier designed to safeguard against hazardous chemical spray-outs, particularly hydrofluoric acid. Its see-through design allows for clear visibility and easy inspection of flanges, valves, and other pipe joints without removal, ensuring safety and operational efficiency. Built from durable polypropylene, it offers exceptional chemical resistance and long service life.
| Specification | Detail |
|---|---|
| Pipe Size | DN200 |
| Pressure Rating | PN16 |
| Material | Polypropylene (PPL) |
| Temperature Resistance | Up to 225°F (107°C) |
| Pressure Resistance | Up to 1000 psi (69 bar) Mullen burst strength |
| Special Feature | Transparent for visual inspection |
| Chemical Compatibility | Hydrofluoric Acid |
| Optional Feature | Quarter-inch threaded drain for secondary containment |
