ROSEMOUNT Radar Level Transmitter 5408A1SHA2E11R6AACAA4S1M5Q4Q8
$ 15,195Each
Lead Time
5 Weeks
Ex-Works
USA
Key Features
-
Delivers high-precision liquid level measurement with consistent performance over long distances
-
Non-contact radar technology minimizes maintenance and is unaffected by process conditions
-
Designed for hazardous environments with certified flameproof construction
-
Integrates easily with modern control systems using HART-enabled analog output
-
Robust stainless-steel wetted materials ensure long service life in industrial processes

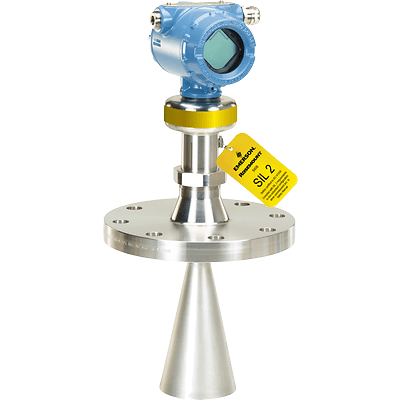

ROSEMOUNT Radar Level Transmitter 5408A1SHA2E11R6AACAA4S1M5Q4Q8
The ROSEMOUNT Radar Level Transmitter 5408 series is a high-accuracy, non-contact radar solution designed for standard monitoring and control applications in industrial liquid level measurement. Engineered for reliable performance in challenging process environments, this transmitter provides precise, stable level readings using advanced radar technology. Its rugged aluminum housing, flameproof certification, and robust process connection make it suitable for use in hazardous locations across oil & gas, chemical processing, power generation, and water treatment industries. The transmitter integrates seamlessly into existing control systems through a 4–20 mA HART communication interface, ensuring dependable operation and easy diagnostics.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | ROSEMOUNT |
| Product Type | Radar Level Transmitter |
| Part Number | 5408A1SHA2E11R6AACAA4S1M5Q4Q8 |
| Function | Continuous non-contact liquid level measurement |
| Application | Standard monitoring and control applications for liquid level measurement |
| Measurement Type | Liquid level |
| Performance Class | Standard |
| Measurement Accuracy | ±2 mm |
| Maximum Measuring Range | Up to 40 m |
| Signal Output | 4–20 mA with HART 7 |
| Housing Material | Aluminum |
| Material of Construction | 316 / 316L / EN 1.4404 |
| Process Connection Type | Raised Face Flange |
| Process Connection Size | 6 in. / DN150 / 150A |
| Process Connection Rating | ASME B16.5 Class 150 |
| Conduit / Cable Threads | M20 × 1.5 |
| Hazardous Area Certification | ATEX, UKEX |
| Protection Type | Flameproof |
| Mounting | Flanged mounting |
