Schneider NW32H14PEDO6.0E Circuit Breaker Masterpact NW32H1 – 3200 A – 4 Poles – Drawout
$ 19,999
Lead Time: Stock
Shipping:
Free shipping on orders over $199 within the USA.
Get a quote for international shipping.
NW32H14PEDO6.0E
-
3200 A 4-pole drawout circuit breaker
-
High breaking capacity (65 kA) for fault protection
-
Complies with EN/IEC 60947-1 and 60947-2 standards
-
Push-button control and drawout mounting design
-
Durable with up to 20,000 mechanical cycles
-
CE, CCC, and EAC certified for global use

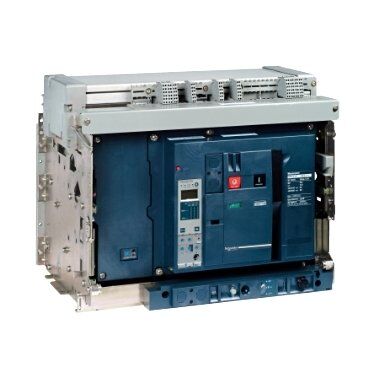

Schneider NW32H14PEDO6.0E Circuit Breaker Masterpact NW32H1 – 3200 A – 4 Poles – Drawout
The Schneider Masterpact NW32H1 is a high-performance circuit breaker designed for power distribution protection. With a rated current of 3200 A, 4 poles, and drawout mounting, it ensures safe and reliable operation in demanding electrical systems. Built with durable components, it provides isolation, fault protection, and system safety for industrial applications.
Specifications
| Specification | Details |
|---|---|
| Range | MasterPacT |
| Product Name | MasterPact NW |
| Circuit Breaker Name | MasterPact NW32H1 |
| Product Type | Circuit Breaker |
| Application | Power Distribution Protection |
| Poles | 4P |
| Neutral Position | Right |
| Control Unit | Without control unit |
| Rated Current | 3200 A at 40 °C |
| Performance Type | H1 65 kA 440 V AC |
| Rated Operational Voltage | 690 V AC 50/60 Hz |
| Suitability for Isolation | Yes (EN/IEC 60947-2) |
| Selectivity Category | Category B |
| Control Type | Push-button |
| Mounting | Drawout |
| Icu – Ultimate Short-Circuit Breaking Capacity | 65 kA (220–690 V AC) |
| Ics – Service Breaking Capacity | 65 kA (220–690 V AC) |
| Icw – Short-Time Withstand Current | 65 kA (1s/3s) |
| Icm – Short-Circuit Making Capacity | 143 kA (220–690 V AC) |
| Sensor Rating | 1600 A / 3200 A |
| Insulation Voltage (Ui) | 1000 V AC 50/60 Hz |
| Impulse Withstand Voltage (Uimp) | 12 kV |
| Power Dissipation | 670 W |
| Breaking Time | 25 ms |
| Closing Response Time | 70 ms |
| Mounting Support | Backplate / Rails |
| Connection – Upside/Downside | Front or Rear |
| Connection Pitch | 115 mm |
| Mechanical Durability | 10,000 cycles (w/o maintenance), 20,000 (with maintenance) |
| Electrical Durability | 5,000 cycles (440 V AC), 2,500 cycles (690 V AC) |
| Dimensions (H x W x D) | 439 x 556 x 395 mm |
| Net Weight | 120 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-2 |
| Certifications | CE, CCC, EAC |
| Protection Degree | IP30 (IEC 60529) |
| Pollution Degree | 4 (IEC 60664-1) |
| Operating Temperature | -25…70 °C |
| Storage Temperature | -40…85 °C |
| Altitude | 0–2000 m (w/o derating), 2000–5000 m (with derating) |
| Package Type | PCE |
| Package Dimensions | 30 x 30 x 50 cm |
| Package Weight | 42.254 kg |
