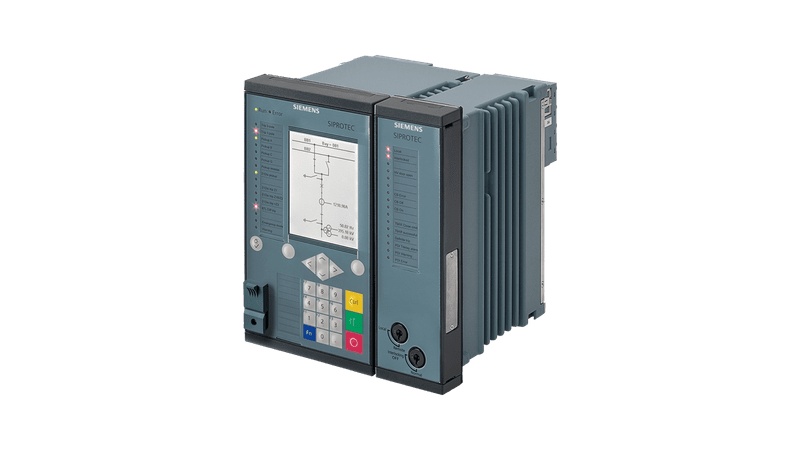

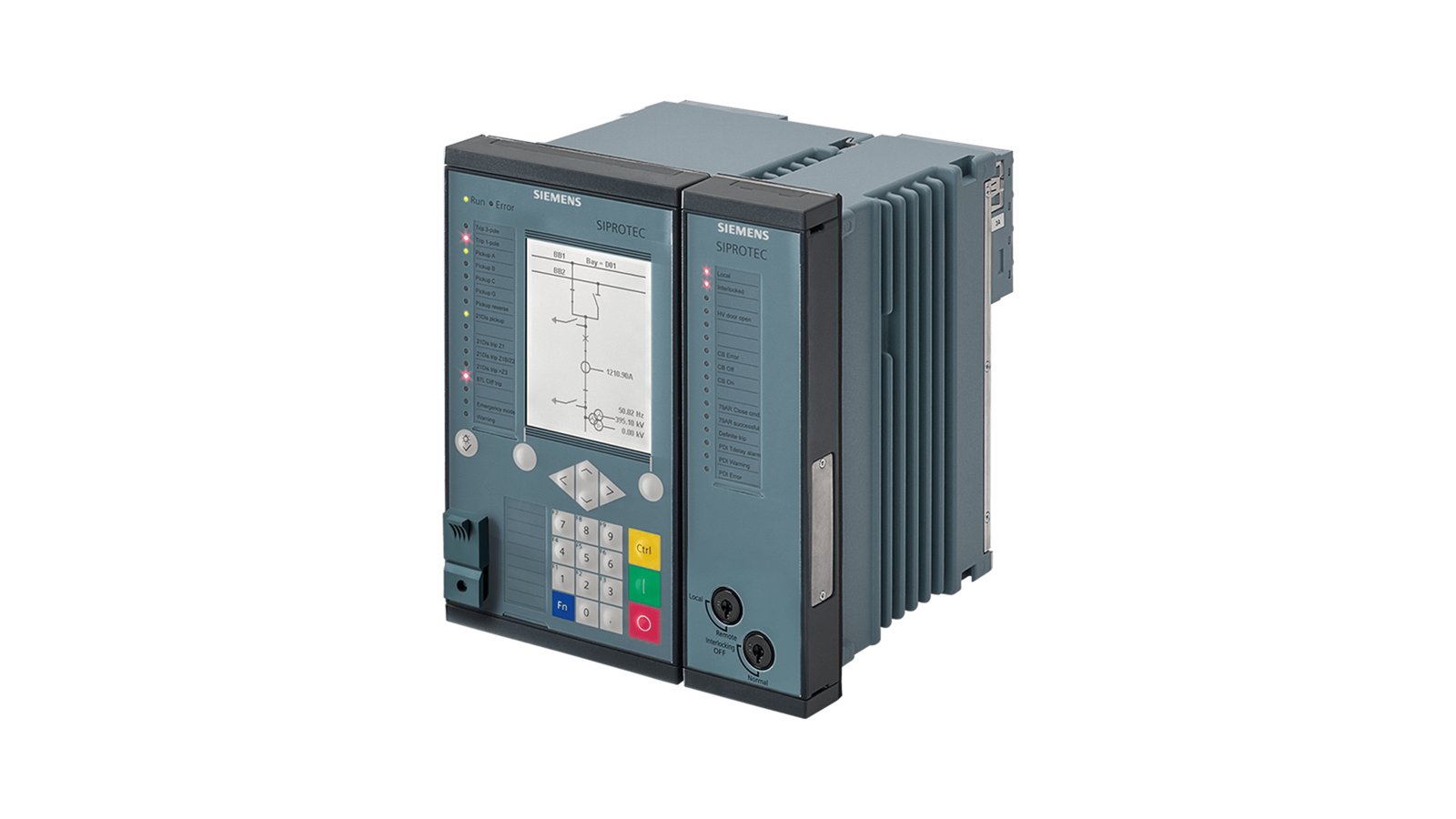

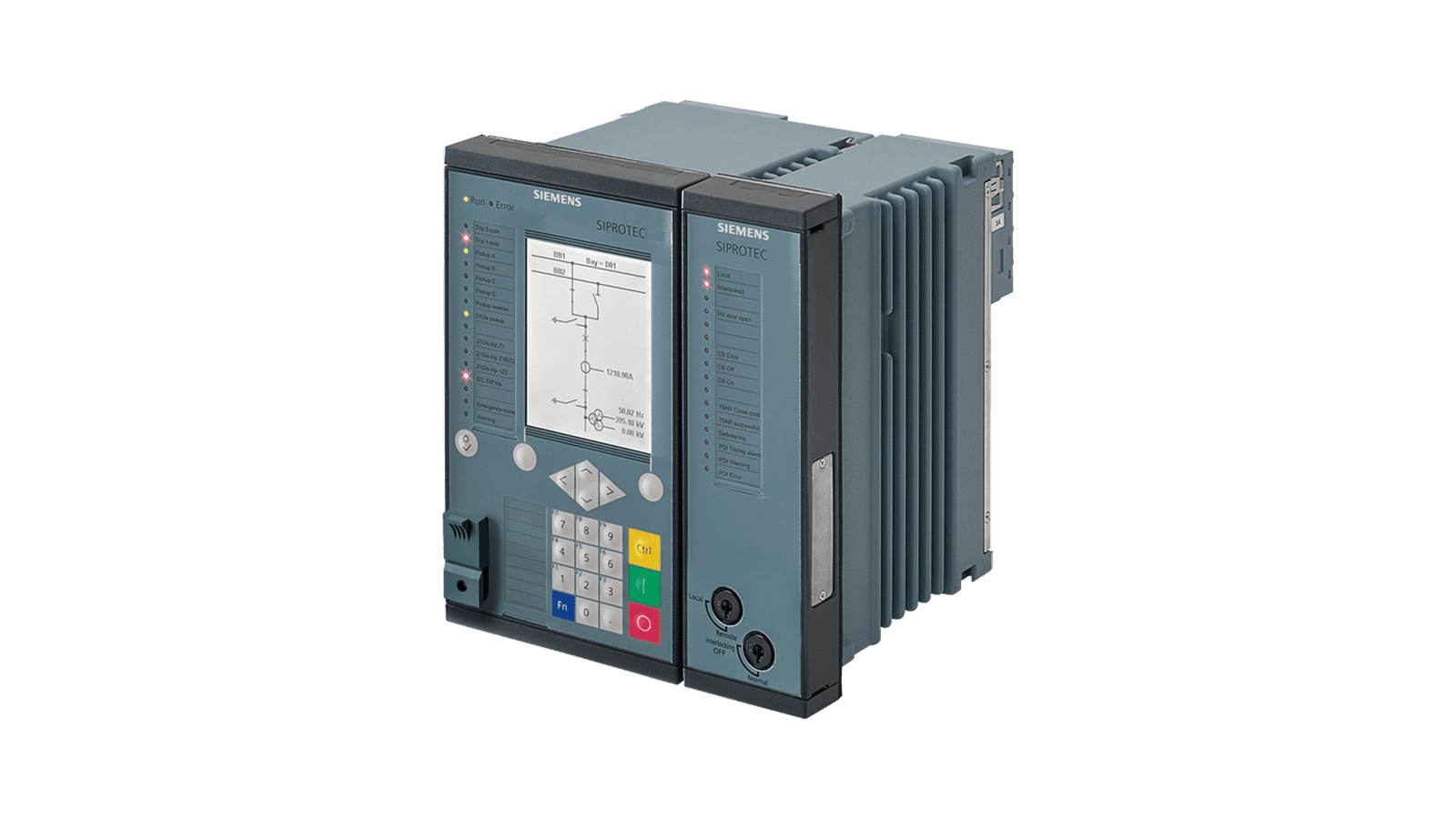

SIEMENS 7SJ85 Overcurrent Protection Device P1J323390, Flush Mounting, Standard Variant
$ 18,312
P1J323390
-
Flush-mounting overcurrent protection device
-
Standard variant with compact 1/2 X 19” row housing
-
27 BI inputs, 17 BO outputs, and 4 VT inputs
-
Integrated operation panel with 32 LEDs and push-buttons
-
Small display for easy monitoring
-
Supports DC 60–250 V and AC 100–230 V supply
SIEMENS 7SJ85 Overcurrent Protection Device P1J323390, Flush Mounting, Standard Variant
The SIEMENS 7SJ85 P1J323390 Overcurrent Protection Device is designed to provide reliable protection and monitoring for electrical systems. This flush-mounting device comes in a standard variant with a compact housing suitable for 1/2 X 19” row installation. It features 27 BI inputs and 17 BO outputs (11 ST + 6 F), along with 4 standard VT inputs. The measuring transducer inputs support 20 mA or 10 V fast signals. The device is equipped with an integrated operation panel, 32 LEDs, push-buttons, and a small display for easy monitoring. It operates with a wide supply voltage range: DC 60–250 V and AC 100–230 V. Ideal for industrial and commercial electrical protection applications, the 7SJ85 ensures precise, dependable overcurrent monitoring.
| Specification | Details |
|---|---|
| Brand | SIEMENS |
| Type | Overcurrent Protection Device |
| Part Number | P1J323390 |
| Model | 7SJ85 |
| Variant | Standard |
| Housing Type | Flush Mounting |
| BI Inputs | 27 |
| BO Outputs | 17 (11ST + 6F + 0HS + 0P) |
| VT Inputs | 4 (Standard) |
| Measuring Transducer Inputs | 0 (20 mA or 10 V, fast) |
| Housing Width | 1/2 X 19” |
| IO Rows | Row 1: IO202, PS201, IO207 |
| LEDs / Push-Buttons | 32 LEDs |
| Operation Panel | Integrated |
| Key Switch | Without |
| Display Type | Small Display |
| Supply Voltage | DC 60–250 V, AC 100–230 V |
| Application | Industrial & Commercial Electrical Protection |
