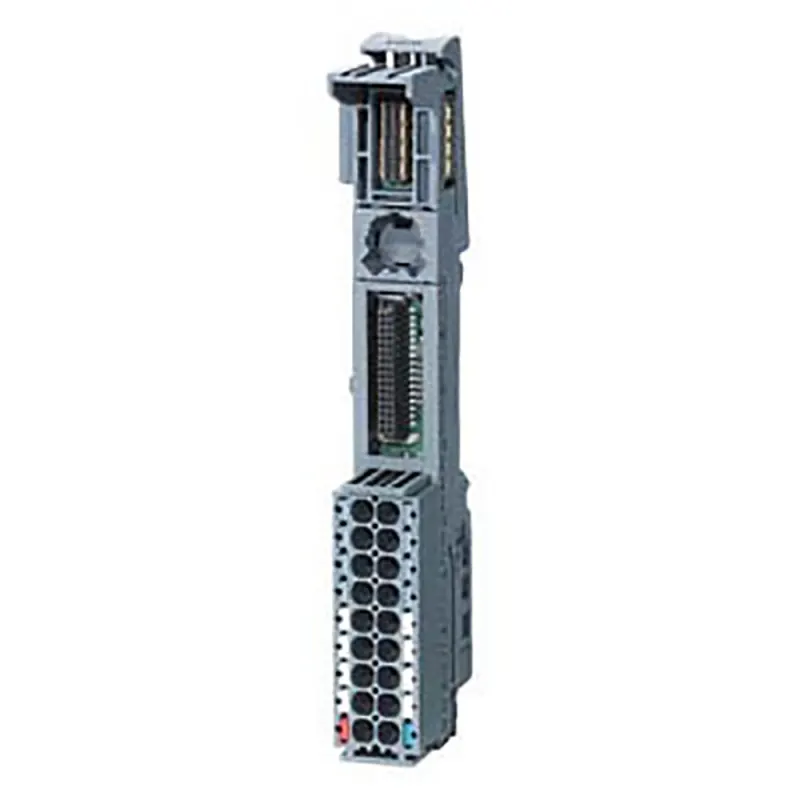

Siemens SIMATIC ET 200SP BaseUnit BU15-P16+A0 6ES7193-6BP00-0BA0
$ 25Each
Lead Time : 1 Week
Ex-Works : USA
Contact us and get a discount for BULK orders only.
Key Features
-
Provides secure connection platform for ET 200SP I/O modules
-
Push-in terminals allow fast wiring without tools
-
Automatic module coding prevents incorrect installation
-
Compact design reduces control cabinet space
-
Reliable performance in distributed PLC systems
MOQ: 20 PcsÂ
Siemens SIMATIC ET 200SP BaseUnit BU15-P16+A0 6ES7193-6BP00-0BA0
The SIMATIC ET 200SP BaseUnit BU15-P16+A0 (6ES7193-6BP00-0BA0) is a reliable and compact base unit for ET 200SP modules. It features push-in terminals, one slot for BU type A0 modules, and is bridged to the left for easy expansion. Designed for industrial automation applications, it ensures safe and efficient power distribution and module integration within PROFINET and PROFIBUS systems.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | BU type A0 |
| Part Number / Model | 6ES7193-6BP00-0BA0 |
| HW Functional Status | From FS06 |
| Supply Voltage | 24 V DC |
| External Protection | Yes; 24 V DC/10 A miniature circuit breaker, type B or C |
| Mains Filter | No |
| Current Carrying Capacity (P1 & P2 bus) | Max. 10 A |
| Current Carrying Capacity (Process Terminals) | Max. 2 A |
| Automatic Encoding | Yes |
| Formation of Potential Groups | New: No; Continued from left: Yes |
| Number of Slots | 1 (Type A0) |
| Isolation Tested | 707 V DC |
| Color Coding Labels (Process Terminals) | CC00 to CC09 |
| Color Coding Labels (AUX/Add-on Terminals) | N/A |
| Terminal Type | Push-in terminal |
| System-Integrated Shield Connection | Yes; Optional |
| Conductor Cross-Section | Min. 0.14 mm² (AWG 26), Max. 2.5 mm² (AWG 14) |
| Number of Process Terminals per I/O Module | 16 |
| Number of Terminals to AUX Bus | 0 |
| Number of Add-on Terminals | 0 |
| Number of Terminals with Connection to P1 & P2 Bus | 2 |
| Dimensions (W×H×D) | 15 × 117 × 35 mm |
| Weight | 40 g |
| Ambient Temperature (Horizontal) | -30 to 60 °C |
| Ambient Temperature (Vertical) | -30 to 50 °C |
| Maximum Installation Altitude | 5,000 m |
