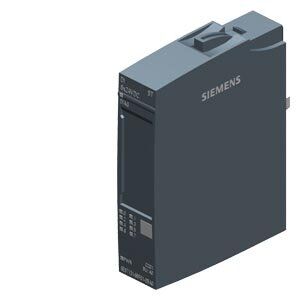

Siemens SIMATIC ET 200SP Digital Input Module DI 8x 24V DC Standard 6ES7131-6BF01-0BA0
$ 55
Lead Time: 1 Week
Ex-Works: Arizona USA
Shipping:
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.
6ES7131-6BF01-0BA0
-
8-channel digital input module
-
24 V DC sink input (PNP, P-reading)
-
Parameterizable input delay: 0.05–20 ms
-
BU-type A0 compatible
-
Module diagnostics: short-circuit, wire-break, supply voltage
-
PROFINET and PROFIBUS compatible
-
Compact dimensions: 15 × 73 × 58 mm
-
Weight approx. 28 g
Siemens SIMATIC ET 200SP Digital Input Module DI 8x 24V DC Standard 6ES7131-6BF01-0BA0
The SIMATIC ET 200SP Digital Input Module DI 8x 24V DC Standard (6ES7131-6BF01-0BA0) is a compact and reliable industrial automation module. It provides 8 sink inputs (PNP, P-reading) with parameterizable input delays, built-in diagnostics for short-circuit, wire-break, and supply voltage monitoring, and is compatible with BU-type A0 BaseUnits. Ideal for PROFINET and PROFIBUS networks in manufacturing, process automation, and control systems.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | DI 8x 24 VDC Standard, Type 3 (IEC 61131) |
| Part Number / Model | 6ES7131-6BF01-0BA0 |
| Usable BaseUnits | BU type A0 |
| Color Code | CC01 |
| I&M Data | I&M0 to I&M3 |
| Isochronous Mode | No |
| PROFINET Compatibility | Yes |
| STEP 7 TIA Portal Configurable from Version | V14 |
| STEP 7 Configurable from Version | V5.5 SP3 or higher |
| PCS 7 Configurable from Version | V8.1 SP1 |
| PCS Neo Configurable from Version | V3.1 |
| PROFIBUS GSD Revision | 3 and 5+ |
| PROFINET GSDML Version | V2.3 |
| Supply Voltage | 24 V DC |
| Permissible Range | 19.2–28.8 V DC |
| Reverse Polarity Protection | Yes |
| Current Consumption | Max. 50 mA |
| Encoder Supply | 24 V DC, max. 700 mA per module |
| Power Loss | Typ. 1 W |
| Number of Digital Inputs | 8 |
| Input Type | Sink, P-reading |
| Input Voltage 0 | -30 to +5 V |
| Input Voltage 1 | +11 to +30 V |
| Input Current (Typ.) | 2.5 mA |
| Input Delay | 0.05–20 ms, parameterizable |
| Max Cable Length | Shielded: 1000 m, Unshielded: 600 m |
| Diagnostics | Short-circuit, Wire-break, Supply voltage, Module diagnostics LED |
| Isolation Tested | 707 V DC |
| Ambient Temperature | -30 to 60 °C horizontal, -30 to 50 °C vertical |
| Dimensions (W×H×D) | 15 × 73 × 58 mm |
| Weight | 28 g |
