Description
Part Number | 1FL6032-2AF21-1LB1 |
---|---|

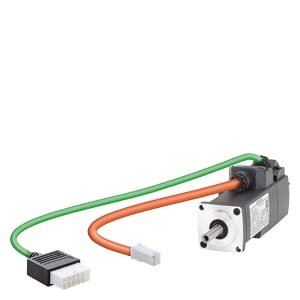

Product Description | SIMOTICS S-1FL6 Operating voltage 230 V 3AC PN=0.2 kW; NN=3000 rpm M0=0.64 Nm; MN=0.64 Nm; Shaft height 30 mm Encoder absolute 20-bit (12-bit multi-turn) with feather key Tolerance N with holding brake Degree of protection IP65 with sealing ring compatible with the converters SINAMICS V90 |
Product Family | 1FL6 servomotors for SINAMICS V90 |
Product Lifecycle (PLM) | PM300: Active Product |
Export Control Regulations | AL : N / ECCN : N |
Estimated Dispatch Time | 30 working days |
Net Weight | 1.500 kg |
Packaging Dimension | 182.00 x 316.00 x 170.00 mm |
Country of Origin | China |
Compliance (RoHS Directive) | Since: 08.01.2016 |
WEEE Take-Back Obligation | Yes |
SCIP Number | Not available |
eClass 1200 | 27-02-26-02 |
eClass 1400 | 27-02-26-02 |
eClass 600 | 27-02-26-02 |
eClass 710 | 27-02-26-02 |
eClass 800 | 27-02-26-02 |
eClass 900 | 27-02-26-02 |
eClass 910 | 27-02-26-02 |
ETIM 700 | EC001851 |
ETIM 800 | EC001851 |
ETIM 900 | EC001851 |
