TRACELINE™ PX3-N Portable X-ray System
$ 59,975Each
Lead Time
8 weeks
Ex-Works
USA
Key Features
-
High-resolution digital imaging enables accurate detection of internal defects in industrial components
-
Portable and lightweight flat panel design supports efficient field and on-site inspections
-
Long-range wireless and cable control options provide operational flexibility in various environments
-
Advanced image processing tools improve defect visibility and inspection accuracy
-
Powerful touchscreen command unit allows intuitive system control and fast image analysis
TRACELINE™ PX3-N Portable X-ray System

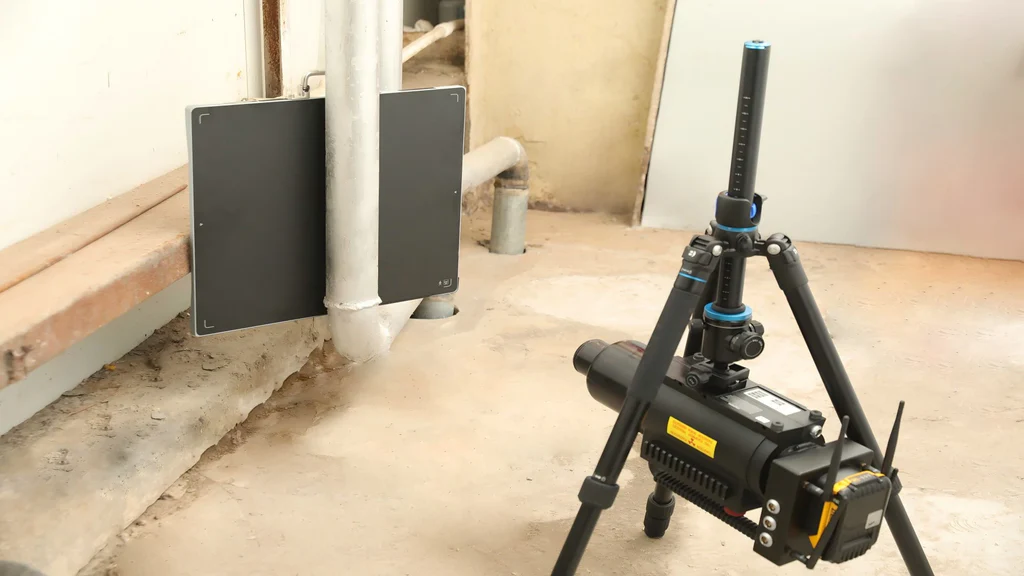

The TRACELINE™ PX3-N Portable X-ray System is an advanced digital radiography solution designed specifically for Non-Destructive Testing (NDT) in demanding industrial environments. Engineered for portability and high-performance imaging, the PX3-N delivers precise internal inspection of welds, castings, pipelines, composite materials, and structural components. Its high-resolution flat panel detector, long-range wireless operation, and powerful image processing software make it ideal for on-site inspections where speed, accuracy, and reliability are critical. Built for field use, the system enhances inspection efficiency while maintaining object integrity and safety.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | TRACELINE™ |
| Product Type | Portable X-ray System |
| Part Number | PX3-N |
| Function | Digital X-ray imaging for non-destructive testing |
| Application | Weld inspection, pipeline inspection, casting analysis, composite material inspection, industrial NDT |
| Imaging Area | 14 inch × 17 inch |
| Panel Dimensions | 388 × 146 × 15 mm |
| Panel Thickness | 15 mm |
| Panel Weight | 4 kg |
| Pixel Size | 139 μm |
| Spatial Resolution | 3.5 lp/mm |
| Battery | Built-in rechargeable battery |
| Wireless Connectivity | Built-in Gigabit WiFi |

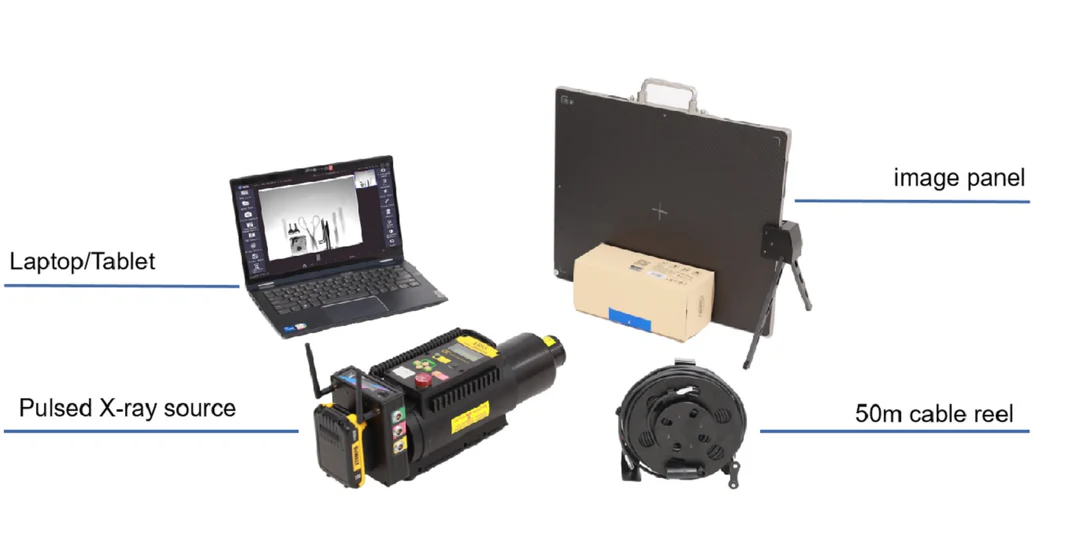

| Cable Control Mode | 50 m cable (cable reel included) |
| Wireless Control Range | 50 m (standard), up to 100–300 m (open field) |
| Recommended X-ray Source | Golden XRS3 pulsed source (270 kV) |
| Penetration Capacity | Up to 85 mm steel plate (with Golden XRS3 source) |
| Image Capture | One-touch image acquisition |
| Image Processing | Auto/manual enhancement, AOI enhancement, grayscale adjustment, color reverse, zoom, emboss, pseudocolor, measurement, annotation |
| Image Stitching | Up to 9 images |
| Command & Display Unit | Intel i5 processor, 16 GB RAM, 14” touchscreen |
| Operating System | Windows 11 |
