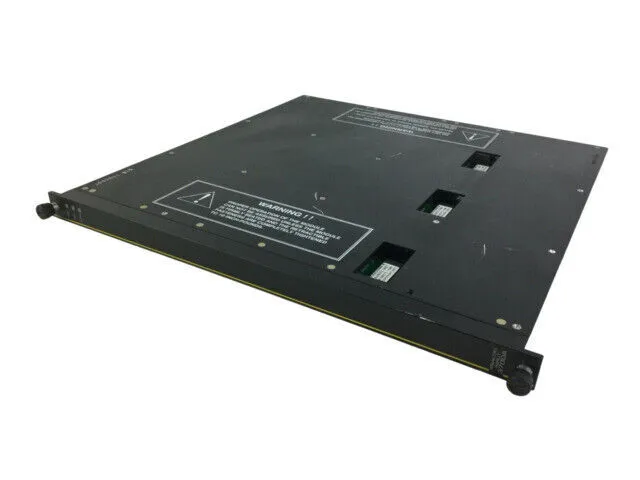

Triconex 3700A Analog Input Module 3700A
$ 2,975Each
Lead Time
Stock
Ex-Works
USA
Key Features
-
Triple Modular Redundancy architecture ensures continuous operation and high fault tolerance.
-
Supports 32 differential analog input channels with precise 12-bit data conversion.
-
Fast 55 ms update rate for responsive system feedback.
-
Comprehensive diagnostics and hot-swappable design reduce downtime and simplify maintenance.
-
Built-in protection and wide common mode range enhance reliability in industrial environments.
Triconex 3700A Analog Input Module 3700A
The Triconex 3700A Analog Input Module is a high-integrity industrial automation component engineered for safety-critical control systems requiring reliable acquisition of analog signals. Utilizing proven Triple Modular Redundancy (TMR) architecture, this module delivers robust fault tolerance and precise conversion of multiple analog inputs into digital values for processing by Tricon safety and control systems. Designed for use in complex process industries, it supports real-time monitoring, enhances system reliability, and enables hot-swappable maintenance without interrupting operation. The 3700A is especially suited for applications in process control, energy, and manufacturing environments where data accuracy and uptime are essential.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Triconex |
| Product Type | Analog Input Module |
| Part Number | 3700A |
| Function | Converts differential analog signals to digital values |
| Input Channels | 32 differential inputs |
| Input Range | 0–5 VDC (+6% overrange) |
| Resolution | 12 bits |
| Accuracy | <0.15% of full-scale range (typical) |
| Update Rate | 55 ms |
| Redundancy | Triple Modular Redundancy (TMR) |
| Diagnostics | Channel fault detection, module status indicators |
| Hot Swappable | Yes |
| Input Protection | 150 VDC / 115 VAC continuous |
| Common Mode Range | -12V to +12V peak |
| Input Impedance | ≥30 MΩ (DC) |
| Mounting | Standard Tricon chassis rail |
