UNITED ELECTRIC E122-8BS Temperature Switch
$400.00
Features
- Standard product approvals include cULus, ATEX, and IECEx
- Optional approvals for Russia, Ukraine, and China
- Internal adjustment hex or external adjustment via calibrated dial(s) with tamper-resistant cover
- Integral cover lock
- SPDT, DPDT, or dual SPDT output options
- Wide variety of sensor materials
- Optional Hastelloy® and Monel® sensor materials for corrosive media
- Wide adjustable deadband models
- Flush mount sensors
- Heat tracing temperature models
Product successfully added to the Quote List

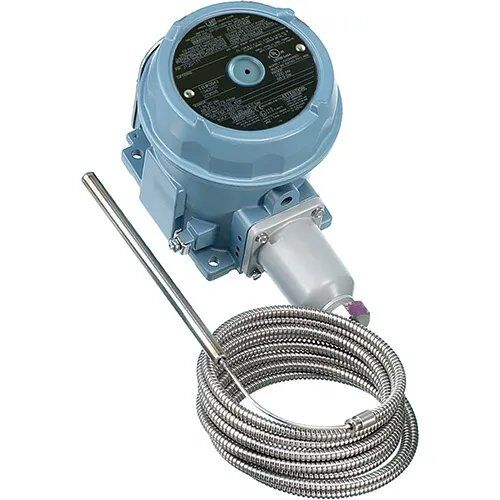

Description
The UNITED ELECTRIC E122-8BS is an adjustable temperature switch designed for precise temperature control in hazardous environments. With a set point range from (+)350 to (+)640°F and a maximum temperature of 690°F, this switch offers reliable performance for various industrial applications. It features a 304SS plain capillary with a 304SS remote bulb, dual SPDT outputs, and an external adjustment dial. The switch is suitable for high voltage and resistive loads, and it is certified for hazardous locations, including Class I, Division 1 and 2, Groups B, C, & D, and meets ATEX and Nema 4X weatherproof standards.
Additional information
| Brand | UNITED ELECTRIC |
|---|---|
| Model Number | E122-8BS |
| Set Point Range | (+)350 to (+)640°F |
| Maximum Temperature | 690°F |
| Sensor Material | 304SS Plain Capillary and Remote Bulb |
| Bulb Dimensions | 3/8" O.D. x 3-1/4" Length |
| Output | Dual SPDT 15A, 125/250/480 VAC Resistive |
| Adjustment | External via Reference Dial |
| Approvals | cULus, ATEX, IECEx; Optional approvals for Russia, Ukraine, and China |
| Construction | Hazardous Location Explosion-Proof, Class I, Division 1 and 2, Groups B, C & D |
| Weatherproofing | Nema 4X |
