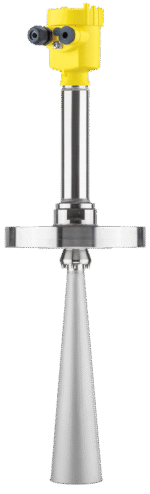

VEGAPULS 6X Radar Level Sensor PS6X.2SWXBTXAAKMAHACXXXXXS
$ 7,670
Lead Time
2-3 Weeks
Ex-Works
USA
Shipping
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.
Key Features
-
High-precision 80 GHz radar technology for continuous level measurement
-
Integrated antenna system for reliable non-contact operation
-
Suitable for standard process applications with wide temperature range (-40…+150°C)
-
Plastic single-chamber housing with IP66/IP67 protection
-
ATEX-certified for use in hazardous areas (Zone 0, 0/1, 1)
VEGAPULS 6X Radar Level Sensor PS6X.2SWXBTXAAKMAHACXXXXXS
The VEGAPULS 6X radar level sensor (second generation) is a high-precision instrument for continuous level measurement in industrial applications. Utilizing 80 GHz radar technology, it provides reliable, non-contact monitoring of liquids and solids, even in challenging process conditions. Designed for standard applications with integrated antenna systems and robust materials, this sensor ensures accurate measurement across a wide temperature range. It is suitable for hazardous areas with ATEX certification, making it ideal for chemical, food, and pharmaceutical industries.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | VEGAPULS |
| Product Type | Radar Level Sensor |
| Part Number | PS6X.2SWXBTXAAKMAHACXXXXXS |
| Generation | 2nd Generation |
| Application | Standard (S) |
| Radar Technology | 80 GHz |
| Process Fitting | Thread ASME B1.20.1, 11⁄2 NPT PN160 / 316/316L |
| Antenna Version | Integrated antenna system (T) |
| Additional Equipment | Without (X) |
| Material / Seal / Process Temp | PEEK / FKM (SHS FPM 70C3 GLT) / -40…+150°C |
| Housing / Protection | Plastic single chamber / IP66/IP67 |
| Cable Entry / Connection | M20x1.5 cable gland -PA black (ø5-9mm) |
| Display / Adjustment Module | PLICSCOM |
| Electronics | Two-wire 4-20 mA / HART |
| Explosion Protection | ATEX; Gas, intrinsic safety; Zone 0, 0/1, 1 |
| Second Line of Defense | Yes |
