VISHAY Electronic Surge Capacitor 859526
$ 2,575
Part No: 859526
-
High-voltage surge protection capacitor
-
17.5 kV rating with 0.2 µF capacitance
-
Indoor installation design for reliability
-
Robust construction for industrial environments
Description

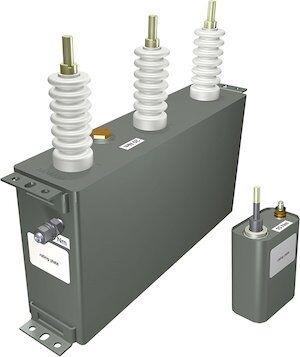

VISHAY Electronic Surge Capacitor 859526
The VISHAY Electronic Surge Capacitor 859526 is designed to protect electrical systems from voltage surges and transient overvoltages. Built for indoor installation, it ensures long-term reliability and safety in high-voltage applications. This unit features a 17.5 kV rating, a capacitance of 0.2 µF, and robust construction for industrial environments.
| Specification | Value |
|---|---|
| Type | Surge Capacitor |
| Voltage Rating | 17.5 kV |
| Capacitance | 0.2 µF |
| Frequency | 50/60 Hz |
| Insulation Level UI | 38 kV |
| Lightning Impulse LI | 95 kV |
| Installation | Indoor |
| Height (H) | 700 mm |
| Height to Top (HT) | 1008 mm |
| Height to Bushing (HB) | 268 mm |
| Dimension A | 246 mm |
| Bushing Diameter (D) | 306 mm |
