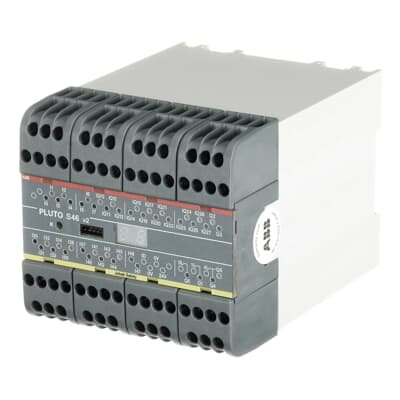

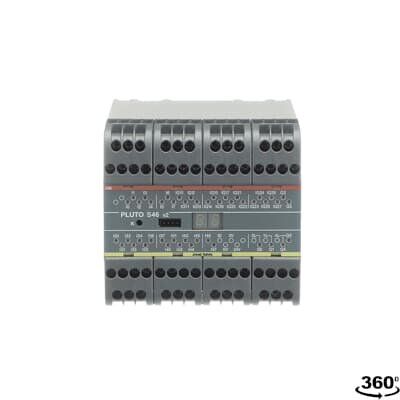

ABB Pluto S46 v2 Programmable Safety Controller 2TLA020070R1800 ABB

$1,370.00

Part No: 2TLA020070R1800
Pluto S46 v2 Programmable Safety Controller, offering 40 failsafe inputs and versatile output options, ensuring reliable machine safety integration with MODBUS ASCII and StatusBus protocols.

Pluto is an affordable, powerful, and compact safety PLC designed for a wide range of machine safety applications. It allows direct connection of most safety devices on the market, enabling multiple safety sensors to share a single input while maintaining the highest safety standards. The Pluto Manager software provides an intuitive programming experience.

This safety PLC features a total of 46 I/O, including 24 failsafe inputs, 16 configurable non-failsafe outputs or failsafe inputs, 4 independently failsafe relay outputs, and 2 independently failsafe transistor outputs. (Excludes Pluto safety bus).

Add to Wishlist
Add to Wishlist
Categories: ,
Trust Badge Image

Description

Compact and cost-effective safety PLC with 40 failsafe inputs, 6 failsafe outputs, and 16 non-failsafe outputs. Supports MODBUS ASCII and StatusBus protocols.



A versatile safety PLC designed for machine safety applications with high diagnostic coverage, supporting multiple safety sensors on a single input while maintaining top safety levels.



General Information

Feature Details
Extended Product Type Pluto S46 v2
Product ID 2TLA020070R1800
EAN 7320500410622
Catalog Description Pluto S46 v2 Programmable safety controller
Country of Origin
Customs Tariff Number 8536411090
Product Main Type Pluto
Product Name Programmable safety controller
Part Type New
Minimum Order Quantity 1 piece
Order Multiple 1 piece
Stocked At (Warehouses)
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

Dimensions

Feature Details
Product Net Depth/Length 120 mm
Product Net Height 84 mm
Product Net Width 90 mm
Product Net Weight 0.65 kg

Safety Information

Feature Details
Performance Level (PL) Up to e
Safety Integrity Level (SIL) 1, 2, 3

Technical Specifications

Feature Details
Diagnostic Coverage High
Number of Inputs Failsafe 40
Number of Outputs Failsafe (Transistor) 2, Failsafe (Relay) 4, Non-Failsafe 16
Protocol Type MODBUS ASCII, StatusBus
Rated Control Supply Voltage (Us) 24 V DC
Supply Voltage 24 V DC

Material Compliance

Feature Details
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting CMRT – Conflict Minerals Reporting Template
REACH Declaration REACh – Safety Products
TSCA Compliance Toxic Substances Control Act (TSCA) declaration

Certificates and Declarations

Feature Details
Declaration of Conformity – CE EC Declaration of conformity Pluto
Declaration of Conformity – UKCA UK DoC – Pluto
TÃœV Certificate EC type-examination certificate – Pluto

Classification

Feature Details
eClass V11.0 : 27242207
ETIM 7 EC000236 – PLC CPU-module
ETIM 8 EC000236 – PLC CPU-module
ETIM 9 EC000236 – PLC CPU-module
UNSPSC 32151705
E-Number (Finland) 2712159
E-Number (Sweden) 3860084
