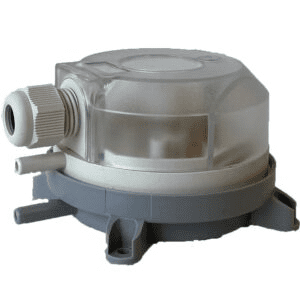

WPS COMMERCIAL DIFFERENTIAL PRESSURE SWITCH WPS0200 WinSMART™

$79.00

Part No: WPS0200
WPS 20/200 PA SPDT, 5/16” OUTER & ¼” INNER DIA TUBING

This versatile differential pressure switch is ideal for HVAC and BAS applications, offering reliable monitoring of air and non-aggressive gases. With a simple field-adjustable knob, a wide pressure range (0.08 to 16.0 inches of water or 20-4,000 Pascals), and a compact size for easy installation, this switch meets CE, RoHS, and REACH standards. Backed by a 5-year warranty, it’s perfect for use in systems requiring pressure, vacuum, and differential pressure control.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

WPS 20/200 PA SPDT 5/16” OUTER & ¼” INNER DIA TUBING

Feature Details
Housing Material Grey colour Polyamide 6.6 plastic
Window Cover Material Frosted Polystyrene resin
Deadband Accuracy +/- 15% of upper and lower pressure ratings
Pressure Connection 2 x plastic pipe connection, 6.0mm (1/4″) external diameter, labelled P1 & P2
Electrical Connection Flat plug 6.3mm x 0.8mm or push-on screw terminals with PG-11 or M20x1.5 cable strain relief
Wetted Parts Silicone based diaphragm, tempered at 392°F (200°C)
Set Point Adjustment Field adjustable knob
Contact Rating 1.0A 250VAC output, 0.1A 24VDC (low voltage version)
Number of Contacts Single-pole double-throw (SPDT)
Maximum Operating Pressure 1.45 psi (10 kPa)
Ambient/Process Temperature -4°F to 185°F (-20°C to 85°C)
Storage Temperature -40°F to 185°F (-40°C to 85°F)
Enclosure Rating IP54
Approvals CE, RoHS & REACH compliant
Typical Life Over 106 switching operations
Weight 150g with cover, 110g without cover
Mounting Position Vertical installation with pressure connections pointing downwards
