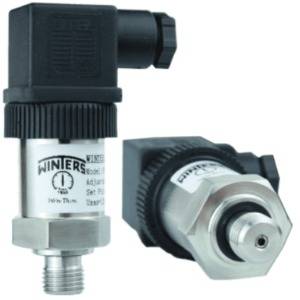

1WPS COMPACT PRESSURE SWITCH 1WPSH194N WinSMARTâ„¢

$282.00

Part No: 1WPSH194N
1WPS SERIES 100/1,000 PSI ADJUSTABLE, SS 1/4″ NPT 2% ACC

The 1WPSH194N pressure switch is designed for adjustable pressure from 100/1,000 PSI with a 2% accuracy. It features a durable stainless steel housing and either diaphragm or piston sensing for versatile applications. The device includes a single SPDT contact and is IP65 rated with an optional IP67 for enhanced protection. Suitable for industrial and commercial machinery, it offers reliability with a 5-year warranty and operates for over 1 million cycles, ensuring long-lasting performance in demanding environments.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

1WPS SERIES 100/1,000 PSI ADJUSTABLE, SS 1/4″ NPT 2% ACC

Feature Details
Housing Material 304L Stainless Steel
Accuracy 2% of full scale
Pressure Connection 1/4″ NPT, G1/4″, M14x1.5, M20x1.5
Electrical Connection DIN ISO, cable outlet optional
Wetted Parts Diaphragm sensor – NBR, Piston sensor – 304L SS with NBR o-ring
Set Point Adjustment Factory set or Field selectable
Deadband 10-20% of setpoint (fixed)
Contact Rating 2A 30VDC; 1A 42VDC; 0.15A 115VDC; 3A 42VAC; 5A 125VAC; 3A 250VAC
Sensor Type Diaphragm (low pressure) or Piston (high pressure)
Number of Contacts 1 X SPDT
Ambient/Process Temperature -4°F to 185°F (-20°C to 85°C)
Enclosure Rating IP65 standard (DIN), IP67 optional (cable leads)
Vibration 10g 10-500 Hz, MIL-STD-202F
Shock 50g 11 ms, MIL-S-901C
Operating Life 1 million cycles
Weight 0.22 LBS (0.1 kg)
