2WPS GENERAL PURPOSE AND ADJUSTABLE DEAD BAND PRESSURE SWITCH 2WPS0206F2F201 WinSMART™
$ 1,561
Part No: 2WPS0206F2F201

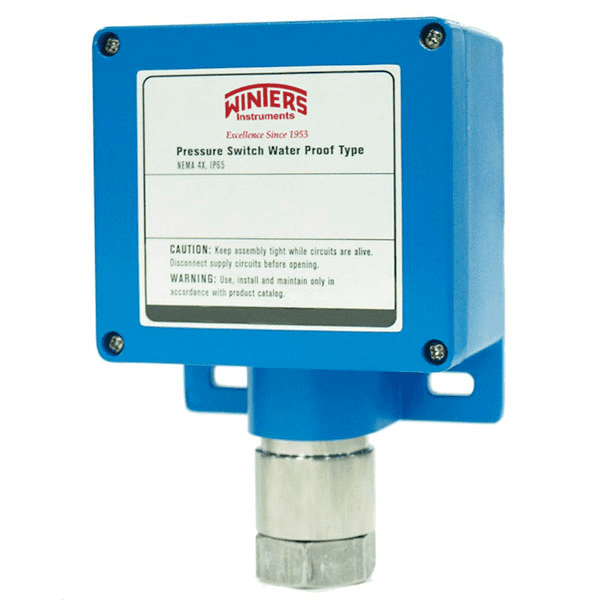

2WPS GENERAL PURPOSE AND ADJUSTABLE DEAD BAND PRESSURE SWITCH
This 2WPS0206F2F201 pressure switch is designed for pressure ranges from 35 to 200 PSI. It features a high accuracy of ±1% and comes with both fixed and adjustable deadband options. The switch is housed in a durable die-cast aluminum housing, making it ideal for pump and compressor monitoring, HVAC systems, and other industrial applications.
Description
2WPS, AL + SS WELDED, 35-200 PSI SPDT FIXED, 1/2″ & 1/2″ NPT F, 1%
| Feature | Details |
|---|---|
| Housing Material | Heavy-duty die-cast aluminum, blue color |
| Accuracy | +/- 1% of the adjustable set-point range |
| Pressure Connection | Female 1/4” or 1/2” NPT, BSP, M20xP1.5 |
| Electrical Connection | Female 1/2” or 3/4” NPT, M20xP1.5 |
| Wetted Parts | 16 Stainless Steel welded |
| Set Point Adjustment | Field selectable |
| Deadband | Fixed or Adjustable |
| Contact Rating | Fixed Deadband: 15A @ 125/250VAC; 0.4A @ 125VDC; 3A @ 30VDC; Gold contact microswitch Adjustable Deadband: 20A @ 125/250/480VAC; 5A @ 125VDC |
| Number of Contacts | 1 x SPDT or 2 x SPDT (only 1 x SPDT for Adjustable Deadband range) |
| Ambient/Process Temperature | -30 to 205 °C (-22 to 400 °F) |
| Enclosure Rating | NEMA 4 & 4X, IP66 |
| Protection Rating | Protection against liquid and solid ingress |
| Approvals | RU recognized (switch only) file #E12252, CRN registration pending |
| Weight | 3.4 lbs (1.54 kg) |
