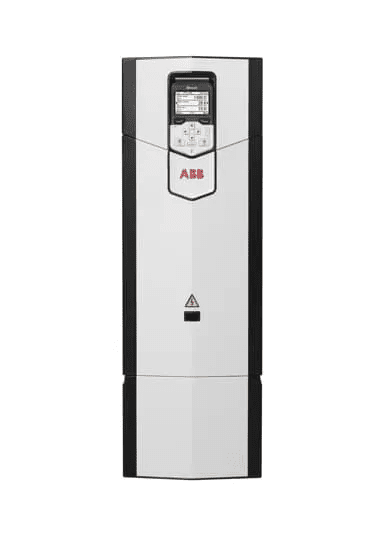

ABB ACS880-01-061A-3 30 kW Frequency Converter
$ 4,521
Part No: 3AUA0000108021
ACS880-01-061A-3 30 kW Frequency Converter, designed for industrial applications, featuring multiple communication options such as MODBUS, PROFIBUS, CAN, and EtherNet/IP. Wall-mounted with IP21 protection, 3-phase input, and an efficiency level of IE2. Suitable for use with control units and PC connections.
Description
ABB ACS880-01-061A-3+E200 drive, 30 kW, 61 A, IP21 protection, wall-mounted, with MODBUS, DeviceNet, PROFIBUS, CAN, EtherNet/IP, PROFINET IO, and TCP/IP communication.
General Information
| Feature | Details |
|---|---|
| Global Commercial Alias | ACS880-01-061A-3 |
| Part Number | 3AUA0000108021 |
| ABB Type Designation | ACS880-01-061A-3 |
| EAN | 6438177388432 |
| Catalog Description | ACS880-01-061A-3 PN: 30 kW, IN: 61 A |
| Country of Origin | Finland (FI), United States (US) |
| Customs Tariff Number | 85044084 |
| Invoice Description | ACS880-01-061A-3 PN: 30 kW, IN: 61 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
Container Information
| Feature | Details |
|---|---|
| Gross Volume | 32.261 dm³ |
| Package Level 1 Depth | 691 mm |
| Package Level 1 Height | 329 mm |
| Package Level 1 Width | 290 mm |
| Package Level 1 Units | 1 carton |
Dimensions
| Feature | Details |
|---|---|
| Product Net Weight | 18.6 kg |
| Product Net Depth/Length | 274 mm |
| Product Net Height | 580 mm |
| Product Net Width | 203 mm |
Technical Specifications
| Feature | Details |
|---|---|
| Number of Phases | 3 |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type 1 |
| Sound Level | 64 dB(A) |
| Frequency (f) | 50/60 Hz |
| Input Voltage (Uin) | 380 … 415 V |
| Mounting Type | Wall-mounted |
| Communication Protocols | MODBUS, DeviceNet, PROFIBUS, CAN, EtherNet/IP, PROFINET IO, TCP/IP, Other Bus Systems |
| Number of Hardware Interfaces | Industrial Ethernet: 0, PROFINET: 0, RS-232: 0, RS-422: 0, RS-485: 1, USB: 1, Other: 6 |
| Includes | With control unit, Without optical interface, With PC connection |
| Analog Inputs/Outputs | 2/2 |
| Digital Inputs/Outputs | 6/5 |
Performance Ratings
| Feature | Details |
|---|---|
| Output Current (Heavy-Duty Use) | 45 A |
| Output Current (Light-Overload Use) | 58 A |
| Output Current (Normal Use) | 61 A |
| Output Power (Heavy-Duty Use) | 22 kW |
| Output Power (Light-Overload Use) | 30 kW |
| Output Power (Normal Use) | 30 kW |
| Apparent Power Output | 42 kVA |
| Efficiency Level | IE2 |
| Standby Loss | 28 W |
Efficiency Data (61800-9-2)
| Operating Point (Hz / Current) | Absolute Loss (W) | Relative Loss (%) | Efficiency (%) |
|---|---|---|---|
| 0 / 25 % | 212 W | 0.5 % | 91.3 % |
| 0 / 50 % | 291 W | 0.7 % | 93.7 % |
| 0 / 100 % | 543 W | 1.3 % | 94.1 % |
| 50 / 25 % | 232 W | 0.5 % | 95.2 % |
| 50 / 50 % | 334 W | 0.8 % | 96.4 % |
| 50 / 100 % | 643 W | 1.5 % | 96.5 % |
| 90 / 50 % | 385 W | 0.9 % | 97.7 % |
| 90 / 100 % | 818 W | 1.9 % | 97.5 % |
Temperature Rating
| Feature | Details |
|---|---|
| Maximum Temperature | 40 °C |
Additional Information
| Feature | Details |
|---|---|
| Product Main Type | ACS880-01 |
| Product Name | Frequency converter |
| SCIP Number | wow-000006 |
| eClass Classification | 27242604 |
| ETIM Classification | EC000242 |
| UNSPSC Classification | 39122001 |
