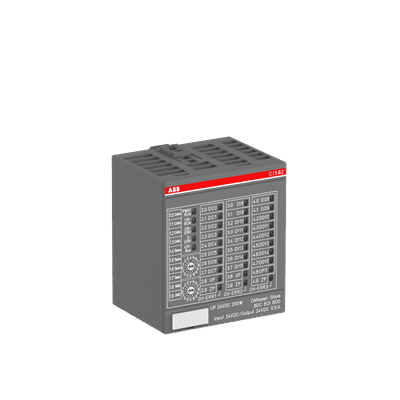

Name: ABB CI582-CN Interface Module
SKU: 3430
Availability: InStock

$2,348.00

Part No: 1SAP228200R0001

ABB CI582-CN Interface Module – A CANopen slave interface module with 8 digital inputs (24VDC), 8 digital outputs (24VDC, 0.5A), and 8 configurable DI/DO (24VDC, 0.5A). This module is extendable by up to 10 I/O modules for greater flexibility.

Product successfully added to the Quote List

Description

Specification	Details
Extended Product Type	CI582-CN
Product ID	1SAP228200R0001
ABB Type Designation	CI582-CN
EAN	4016779866279
Catalog Description	Interface module. CANopen slave. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A
Product Net Weight	0.13 kg
Product Net Depth/Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Gross Weight	0.157 kg
I/O Configuration	8 DI: 24VDC, 8 DO: 24VDC 0.5A, 8 configurable DI/DO 24VDC 0.5A
Extension Capability	Extendable by up to 10 I/O modules
