Description

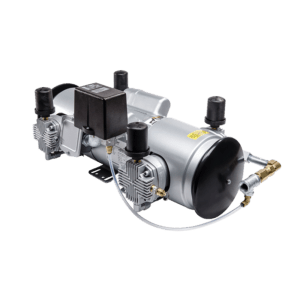

7L PISTON, OIL-LESS OPERATION, HIGH TORQUE MOTOR
| Feature | Details |
|---|---|
| Brand | GAST |
| Part Number | 7LDE-46S-M750X |
| Tank Style | Tankless |
| Control Type | Pressure Switch |
| Current Rating | 10.8 A; 12 A; 21.6 A |
| Cylinder Material | Aluminum |
| Duty Cycle | Continuous |
| Electrical Connection | Wired Leads |
| Finish | Painted |
| Free Air Flow Rate | 9.1 cfm |
| Frequency | 60 Hz |
| Inlet Size | 3/8 in NPT |
| Lubrication Type | Oil-Free |
| Max Continuous Pressure | 100 psi |
| Max Intermittent Pressure | 100 psi |
| Max Operating Temp | 104 °F |
| Min Operating Temp | 32 °F |
| Max Speed | 1,725 RPM |
| Number of Cylinders | 4 |
| Outlet Size | 3/8 in NPT |
| Output Power | 1.5 HP |
| Overall Height | 8.5 in |
| Overall Length | 20.75 in |
| Overall Width | 12.062 in |
| Phase | Single |
| Piston Type | Reciprocating |
| Power Source | Corded Electric |
| Pump Type | Piston |
| Sound Level | 63 dBA |
| Standards | CE, CSA |
| Thermal Protection | Automatic Reset |
| Valve Type | Corrosion Resistant Sandwich |
| Voltage | 115/208-230V AC |
| UNSPSC | 40151601 |
| Country of Origin | USA (subject to change) |
