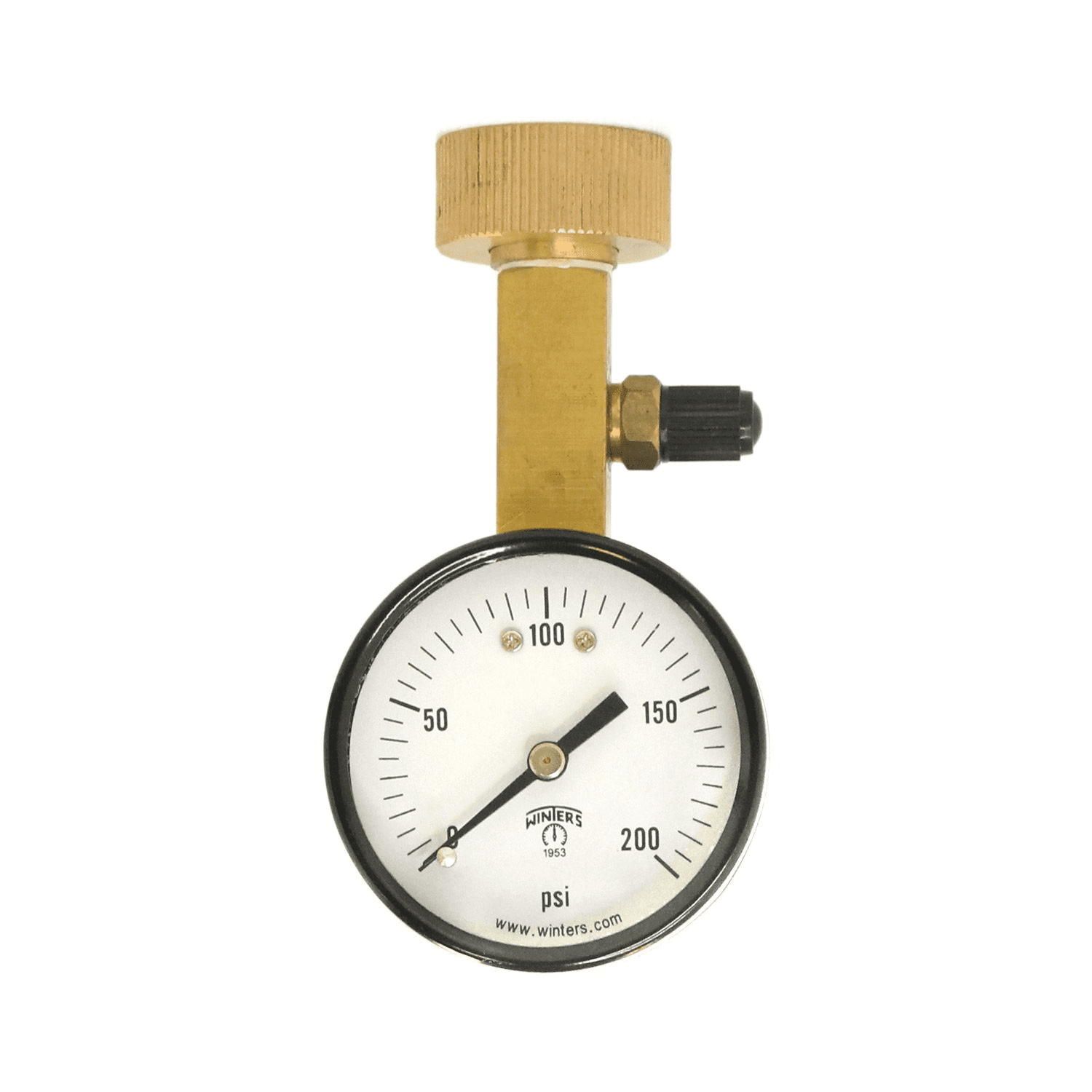

AIR OVER WATER TEST GAUGE AOM-204TM

33.87$

Part Number: AOM-204TM
AOM Air Over Water Test Gauge by Winters Instrumentation

The AOM-204TM is an economical pressure gauge designed for water pressure testing, featuring a swivel hose adapter for easy connectivity. With a Schrader bleed valve and a robust black steel case, this gauge is built for durability. It includes brass wetted parts and offers a single scale in PSI with ±3-2-3% accuracy, ensuring reliable performance for residential and commercial applications. Compliant with ASME B40.100 and backed by a five-year warranty, it is suitable for non-clogging and non-corroding media.

Category: Gauges

DESCRIPTION & FEATURES

Economical pressure gauge with swivel hose adapter for water pressure testing
Schrader bleed valve with cover on socket
Black steel case
Brass wetted parts
Single scale PSI
±3-2-3% accuracy
ASME B40.100 compliant
5 year warranty

Applications

Residential & commercial pressure testing of water lines|Suitable for non-clogging and non-corroding media

SPECIFICATIONS

Dial	2” (50mm) white aluminum with black markings
Case	Steel painted black
Lens	Acrylic
Ring	Steel, painted black
Bourdon Tube	Phosphor bronze
Movement	Brass
Pointer	Aluminum, black
Connection	3/4” female swivel hose connection
Welding	#50 tin solder
Ambient/Process Temperature	-40°F to 150°F (-40°C to 65°C)
Water Test	32°F to 150°F (0°C to 65°C)
Working Pressure	Maximum 75% of full scale value
Accuracy	±3-2-3% ANSI/ASME Grade B
Enclosure Rating	IP52
Warning	Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
