DPG DIGITAL PRESSURE GAUGE DPG207 / -15/0/150 PSI Winters Instrumentation
$ 526
Part Number: DPG207

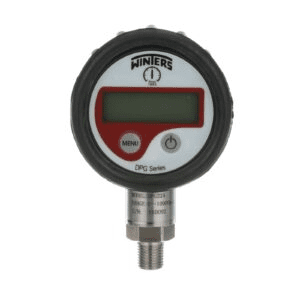

DPG Digital Pressure Gauge by Winters Instrumentation
The DPG207 Digital Pressure Gauge from Winters Instrumentation is designed for high accuracy and reliability in both commercial and industrial applications. It features an easy-to-use two-button interface, a reset-to-zero function, and a bright backlit display for enhanced visibility. With a durable 316L welded diaphragm seal and ±1% accuracy, this gauge provides quick and clear pressure readings, making it an essential tool for effective monitoring and testing.
Description
DESCRIPTION & FEATURES
- Simple 2 button operation
- Reset to zero feature
- Backlight turns on when on/off button is pressed
- Option for display to remain continuously on
- Continuous Peak pressure indication option
- 316L welded diaphragm seal
- Rubber boot is standard
- ASME B40.100 compliant
- RoHS compliant
- ±1% accuracy (±0.5% optional for gauges up to 10,000 psi)
- 5 year warranty
- Digital gauges are useful instruments for reading pressure values and provide fast results with clear visibility. If you’re looking for digital gauges, look no further! Our DPG Digital Pressure Gauge is one of the top-performing digital gauges in the market.
Applications
Ideal for commercial and industrial applications in both test measurement and general purpose installations
SPECIFICATIONS
| Case Size | 2.5″ (63mm) |
| Case Material | ABS |
| Rubber Boot | Silicone rubber |
| LCD Display | 2″ x 3/4″ (48mm x 16mm) |
| Connection | 1/4″ NPT 304SS |
| Sensor | 316L welded, Piezo |
| Operation Life | 1 million cycles |
| Power Supply | 2 x AAA battery (1.5V); Sold separately |
| Battery Life | 2yrs (auto shut-off mode) |
| Power Mode | Auto or manual shut-off |
| Display Digits | 4 digits to 5,000 psi
5 digits for10,000 psi and 15,000 psi |
| Pressure Unit Selection | psi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi
psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi |
| Response Time | ≤ 3 Hz display refresh rate |
| Proof / Burst Pressure | 200% / 300% FS |
| Operating / Storage Temperature | Operating: 14°F to 122°F (-10°C to 50°C)
Storage: -4°F to 167°F (-20°C to 75°C) |
| Accuracy | ±1% (±0.5% optional for gauges up to 10,000 psi) |
| Enclosure Rating | IP60 |
