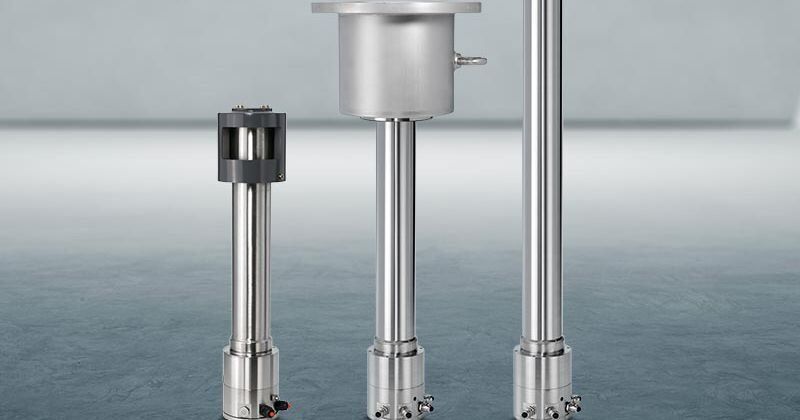

Berthold Technologies CrystalSENS LB 480 Density Measurement Detector 54733-0032
13,776.00$
Part No : 54733-0032
CrystalSENS LB 480, NaI crystal point detector, 24 VDC, 4–20 mA output, HART 7, IP69K, stainless steel, explosion-proof for ATEX/IECEx/NEC zones.
Berthold Technologies CrystalSENS LB 480 Density Measurement Detector 54733-0032
CrystalSENS with NaI 50/50, 24 VDC, HART output, Stainless Steel Housing, ATEX/IECEx/NEC Certified
CrystalSENS LB 480 is a high-performance, compact point detector equipped with a sodium iodide (NaI) scintillation crystal, designed for density, bulk flow, and level switch applications in industrial environments. Its superior gamma radiation sensitivity allows it to operate with low source activity, making it ideal for highly accurate level measurements when paired with a rod source. Featuring automatic decay compensation, HART 7 communication, and robust self-monitoring, the LB 480 ensures long-term stability (≤0.002%/°C) and high reliability. With IP69K protection, stainless steel construction, and global explosion-proof certifications, it excels in harsh or space-constrained environments.
General Specifications
| Specification | Detail |
|---|---|
| Brand | Berthold Technologies |
| Product Name | CrystalSENS Density Measurement Detector |
| Model | LB 480 |
| Part Number | 54733-0032 |
| Application | Density, Bulk Flow, Level Switch, High Accuracy Level |
| Detector Type | Point detector with scintillation crystal |
| Crystal Material | Sodium Iodide (NaI 50/50) |
| Output (Analog) | 4–20 mA, Isolated, Active, Self-monitoring |
| Output (Digital) | Open collector (Error, Min/Max, Temp., Radiation Interference) |
| Communication Interface | HART (HART 7 Compatible) |
| Setup Interface | Menu-guided via HART |
| Cable Entry | Radial M20 |
| Power Supply | 24 VDC (18–32 V range) |
| License Key | Level Switch, Level and Density (License Key 3) |
| Customs Tariff Code | 90222900 |
Mechanical & Environmental
| Specification | Detail |
|---|---|
| Housing Material | Stainless Steel 1.4301 (304) |
| Design | Compact, space-efficient |
| Mounting Options | For use with point or rod source |
| Ambient Temp Range | T6: -40°C to +65°C T1–T5: -40°C to +80°C (Cooling required >60°C) |
| Long-Term Stability | ≤0.002% per °C (Patented method) |
| Ingress Protection | IP66, IP67, IP68, IP69K, NEMA 4X |
Explosion Protection & Certifications
| Standard | Certification / Rating |
|---|---|
| ATEX (Europe) | II 2 G, II 2 D |
| IECEx / CEC (Canada) | Class I Zone 1, Zone 21 |
| ATEX/IECEx Gas | Ex db eb IIC T6 Gb |
| ATEX/IECEx Dust | Ex tb IIIC T95°C Db |
| NEC (U.S.A.) Gas | AEx db eb IIC T6 Gb |
| NEC Dust | AEx tb IIIC T95°C Db |
