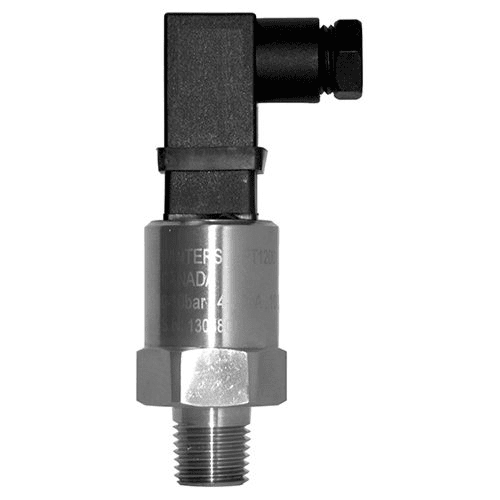

E1 OEM PRESSURE TRANSMITTER LE130VCR11 -1/0 BAR
$297.09
Part No: LE130VCR11
The LE1 OEM Pressure Transmitter features a -1 to 0 BAR range, constructed from durable stainless steel with a ceramic diaphragm. Ideal for precise applications in pump and compressor monitoring, HVAC, and more.
Product successfully added to the Quote List
Description
| Feature | Details |
|---|---|
| Product Type | LE1 OEM Pressure Transmitter |
| Part Number | LE130VCR11 |
| Description | Developed for precise pressure measurement within a vacuum-to-atmospheric range. |
| Output Signal | Standard 2-wire: 4-20 mA / Vs = 12-30 Vdc; Optional 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc. |
| Accuracy | ±0.5% FSO. |
| Response Time | <10 ms |
| Insulation | >100 MΩ @ 50V |
| Operating Temperatures | -40°F to 212°F (-40°C to 100°C) |
| Pressure Port / Housing | 304 SS |
| Wetted Parts | Diaphragm: Ceramic; Seals: NBR |
| Current Consumption | 2-wire: 25 mA max; 3-wire voltage: 5 mA (short-circuit current 20 mA) |
| EMC | EMI: EN50087-1/-2; EMS: EN50082-2 |
| Stability | Vibration: 10 g / 5 Hz to 200 Hz; Shock: 20 g / 11 ms |
| Operation Life | 2 million cycles |
| Approval | CE, RoHS |
