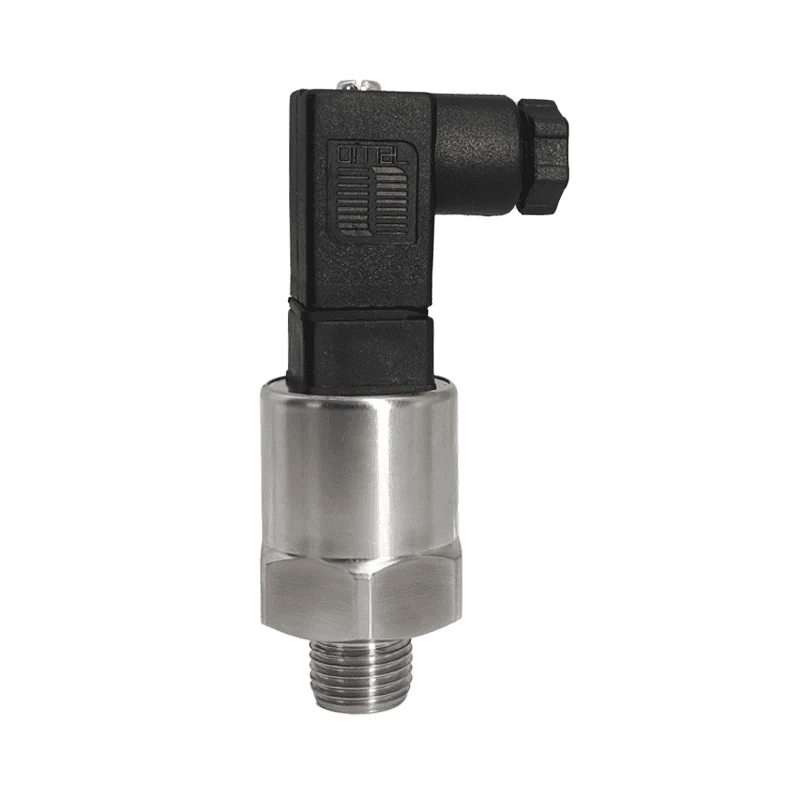

LE1 OEM PRESSURE TRANSMITTER LE10100 – 30″/0/100 PSI
$ 208
Part No: LE10100
LE1 OEM PRESSURE TRANSMITTER 30″/0/100 PSI This reliable pressure transmitter features a robust stainless steel construction, precise ceramic sensor, and an accuracy of ±0.5%. Perfect for various applications, including pump and compressor monitoring, refrigeration, and HVAC systems.
Description
| Feature | Details |
|---|---|
| Product Type | LE1 OEM Pressure Transmitter |
| Certification | CE |
| Construction | Compact stainless steel construction with ceramic sensor |
| Pressure Range | Available ranges include Vac up to 8,700 psi (600 bar) |
| Connections | Wide range of mechanical and electrical connections |
| Accuracy | ±0.5% accuracy (±1% for pressures ≤45 psi) |
| Enclosure Rating | IP65 and IP67 |
| Warranty | 5-year warranty |
| Applications | Suitable for a variety of applications including pump and compressor monitoring, refrigeration, and HVAC |
| Output Signal | Standard 2-wire: 4-20 mA / Vs = 12-30 Vdc Optional 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc |
| Response Time | <10 ms |
| Insulation | >100 MΩ @ 50V |
| Permissible Temperatures | Operating: -40°F to 212°F (-40°C to 100°C) Compensating: 14°F to 176°F (-10°C to 80°C) |
| Pressure Port / Housing | 304 SS |
| Wetted Parts | Diaphragm: Ceramic (up to 2,900 psi) Seals: NBR, Diaphragm: silicone (over 3,000 psi) |
| Current Consumption | 2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA) |
| EMC | EMI: EN50087-1/-2 EMS: EN50082-2 |
| Stability | Vibration: 10 g / 5 Hz to 200 Hz Shock: 20 g / 11 ms |
| Operation Life | 2 million cycles |
| Approval | CE, RoHS |
