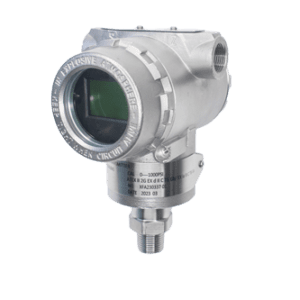

LY14 Pressure Transmitter LY14HIA3P55G1R5G2W6LS WinSMART™
$3,428.00
Part No: LY14HIA3P55G1R5G2W6LS
LY14 Pressure Transmitter WinSMART™ – 0/1000 PSI range, 0.1% accuracy, explosion-proof and intrinsically safe design, 316 SS housing, and 4/20mA + HART communication for use in hazardous locations.
Product successfully added to the Quote List
Description
LY14 SERIES, 0/1000 PSI, 4/20MA+HART, IS, 0.1%, ALL 316 SS, G1/2″, LCD
| Feature | Details |
|---|---|
| Part Number | LY14HIA3P55G1R5G2W6LS |
| Description & Features | Smart multi-functional digital pressure transmitter designed for industrial applications. Explosion-proof and intrinsically safe designs for hazardous locations. Stainless steel and aluminum housing. Gauge and Absolute pressure measurement with 0.1% accuracy. Simple to operate 3-push button control with a 5-digit display. 4/20mA plus HART® digital communication. Simplified re-zero calibration via push-button functionality. 10:1 rangeability allows for installation in various applications. |
| Applications | Suitable for pressure measurement in Oil & Gas installations (onshore and offshore), power generation (including renewable energy facilities), wastewater locations, and other hazardous areas. |
| Input | 4/20 mA + HART, 2-wire / V = 9-32 VDC |
| LCD Display | Available with LCD display (standard) or without LCD display (optional) |
| Accuracy | 0.1% URL standard |
| Stability | 0.2% of URL for two years |
| Temperature Ranges | – Working/Media temperature: -25/95°C (with display -13/203°F), -40/185°C (without display -4/158°F) – Ambient temperature: -40/60°C (with display -40/140°F), -40/115°C (without display -4/240°F) – Storage temperature: -40/110°C (with display -40/85°F), -40/230°C (without display -40/446°F) |
| Working Humidity | 0-100% relative humidity |
| Pressure Connection | 1/2” NPT M or F, G1/2”, M20*1.5 |
| Housing | 304SS, 316SS, rugged die-cast aluminum housing (painted blue) |
| Wetted Parts | 316 SS process connection, 316 L diaphragm |
| Response Time | 200ms |
| Turn On Time | 2 seconds (with minimum damping enabled) |
| Power Consumption | <162.8 mW |
| Vibration Effect | +/- 0.005% of URL per G to 200 Hz, in accordance with IEC60770-1:1999 |
| Available Pressure Units | kPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm², kg/cm², Pa, ATM, m, cm, mm |
| Protection Class | EMC, reverse polarity protected |
| Approval | ATEX, II 2 G Ex db IIC T6 Gb ATEX, II 1 G Ex ia IIC T1~T6 Ga Intrinsically safe parameters: Ui=28Vdc, Ii=93mA, Pi=0.65W, Ci=5nF, Li=0 mH |
| Protection Class | IP66 |
| Weight | 5.95 lbs (2.7 kg) |
| Operational Life | 100 million cycles |
