Metern U Series Coriolis Mass Flowmeter DN50
$ 2,599
Lead Time: Contact us for lead time inquiry
Shipping:
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.
DN50
-
Direct measurement of mass flow and density with superior accuracy
-
U-shaped dual-tube design for stable and repeatable measurements
-
Ideal for liquids, slurries, and high-viscosity media
-
Measures density, temperature, and solute concentration online
-
Low installation requirements with flexible configuration
-
Suitable for oil, chemical, food, and pharmaceutical industries

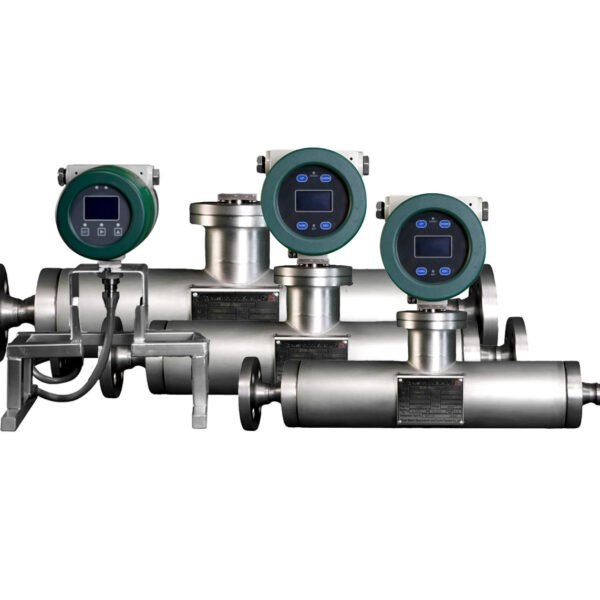

Metern U Series Coriolis Mass Flowmeter DN50
The Metern U Series Coriolis Mass Flowmeter is a high-precision instrument engineered for direct mass flow and density measurement of liquids and slurries. Its U-shaped dual-tube structure ensures excellent stability, high measurement accuracy, and repeatability — even in harsh process conditions. The DN50 model combines flexible configuration, reliable performance, and industrial-grade durability for demanding applications.
| Specification | Details |
|---|---|
| Nominal Diameter | DN50 |
| Measurement Accuracy | Superior to 0.1% |
| Range Ratio | 1:15 ~ 1:20 |
| Working Pressure | 0–25 MPa |
| Measuring Temperature | -200°C to 350°C |
| Ambient Temperature | -50°C to 60°C |
| Material | 316L / 304 / Hastelloy |
| Output Signal | Pulse, 4–20mA, RS485 |
| Working Power Supply | 24VDC / 220VAC |
| Installation Mode | Flange, Thread, Clamp |
| Converter Form | Separate / Integrated, Wall-Mounted |
| Display Data | Instantaneous Flow, Cumulative Flow, Density, Concentration |
| Explosion-Proof Class | Exdb[ia]IICT6Gb |
| Protection Class | IP67 |
