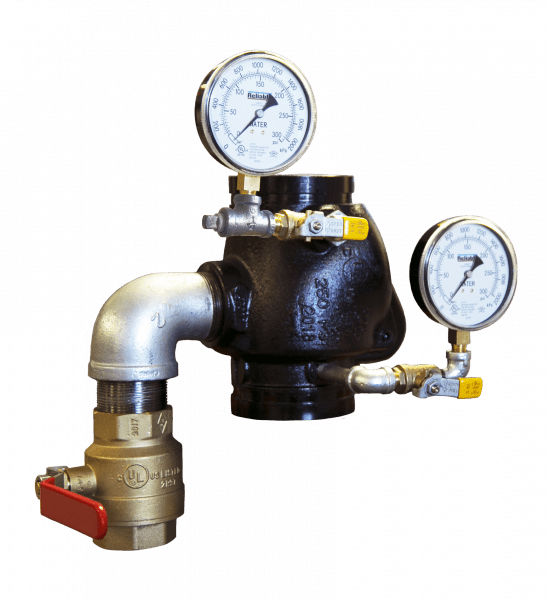

Model G Riser Check Valve – 6107030000 – 3″ (80mm) – 3RC
The Model G Riser Check Valve is designed for use in wet pipe fire protection systems. Its grooved end connections facilitate easy installation with listed or approved mechanical couplings, ensuring a quick and secure setup. The valve is equipped with a spring-loaded clapper that minimizes water hammer, maintaining smooth and reliable operation within the fire protection system. Its lightweight and compact design allow for versatile installation in both horizontal and vertical configurations.
This valve is also designed with factory-tapped drain outlets and gage ports on both sides, providing flexibility during installation. Its low friction loss body design ensures optimal performance by reducing energy loss. The Model G Riser Check Valve is a cost-effective solution, especially in installations that do not use mechanical alarms but require electric alarms when paired with water flow detectors.
Technical Data:
| Valve Size | Pressure Rating | Face-to-Face Dimension | Eq. Length C = 120 | Eq. Length C = 100 | Cv Factor | Valve Shipping Weight | Trim Shipping Weight |
|---|---|---|---|---|---|---|---|
| 3″ (80mm) | 250 psi (17.3 bar) | 7-5/8″ (195 mm) | 5.3’ (1.6 m) | 3.8’ (1.2 m) | 376 | 11 lbs (5.0 kg) | 6 lbs (2.7 kg) |
Model G Riser Check Valve Dimensions (Table B):
| Valve Size | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 3″ (80mm) | 7-5/8″ (195mm) | 4-15/16″ (125mm) | 1-15/16″ (49.2mm) | 7-11/16″ (195mm) | 5-3/4″ (146mm) | 5-1/2″ (140mm) | 13-1/8″ (333mm) | 8-1/8″ (265mm) |
Additional Product Details:
- Grooved End Connections: Facilitates fast and secure installation with approved mechanical grooved couplings.
- Non-Slamming, Spring-Loaded Clapper: Minimizes water hammer and ensures reliable performance in fire protection systems.
- Universal Gage Ports: Located on both sides for flexible installation and system monitoring.
- Low Friction Loss Design: The streamlined body minimizes energy loss and boosts system efficiency.
- Factory-Tapped for Drain: Outlets are factory-tapped for 3/4″, 1-1/4″, or 2″ NPT drains.
- Ideal for Wet Pipe Fire Protection Systems: Perfect for installations requiring electric alarms when paired with water flow detectors.
Installation:
- Install according to NFPA 13 guidelines for sprinkler systems.
- Ensure that the flow is directed upwards for vertical installations.
- In horizontal installations, the hinge pin should be positioned at the top for optimal operation.
Maintenance:
- Conduct regular inspections as per NFPA 25 standards.
- Replace corroded or damaged components to maintain the valve’s optimal performance.
- Increase the inspection frequency if the valve is exposed to harsh or corrosive environments.
Replacement Parts:
- Seal Kit: 6888040030 (3″ valve)
- Body Seat Sub Assembly: 91005203 (3″ valve)
