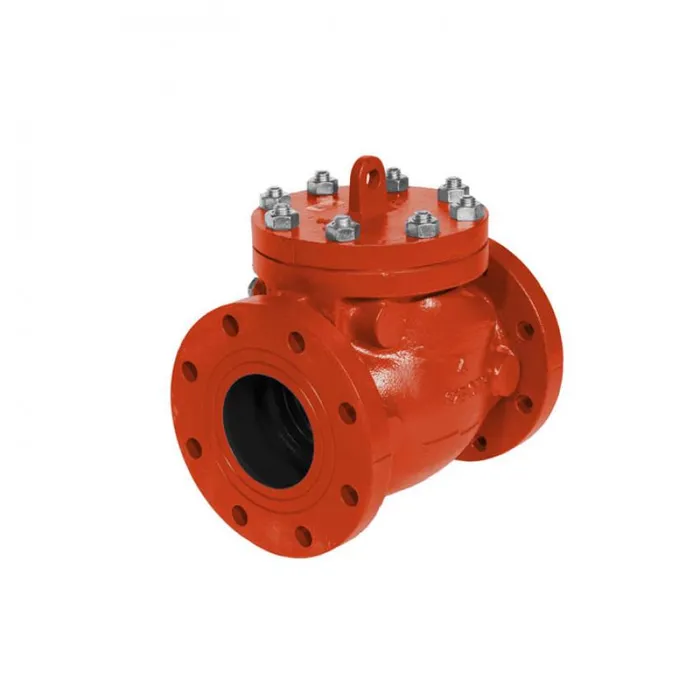

Mueller Check Valve 10″ A-2122-B13
$ 5,500
Part No: A-2122-B13
-
Heavy-duty ductile iron swing check valve
-
350 PSI rating for high-pressure applications
-
UL/FM approved for fire protection systems
-
Epoxy-coated for corrosion resistance and durability
Mueller Check Valve 10″ A-2122-B13
The Mueller 10″ A-2122-B13 Swing Check Valve is engineered for dependable performance in fire protection and water distribution systems. Constructed with a ductile iron body and cover, this valve features a Buna-N rubber disc seat and bronze body seat ring for durability and leak-free operation. Designed to ANSI Class 125/150 standards, it provides a pressure rating of 350 PSI (24 bar) and is protected with a two-part liquid epoxy coating in red, making it UL/FM approved for safety-critical applications.
| Specification | Information |
|---|---|
| Type | Swing Check Valve |
| Size | 10″ |
| Model | A-2122-B13 |
| Body & Cover Material | Ductile Iron ASTM A536 Gr 65-45-12 |
| Disc Seat Ring | Rubber Buna-N ASTM D2000 BK807 |
| Body Seat Ring | Bronze B62 |
| Pressure Rating | 350 PSI CWP (24 Bar) |
| Standards | CL 125 ANSI B16.1 / CL 150 ANSI B16.42 |
| End Connections | FF Flanged Ends |
| Coating | Two-part liquid epoxy, Red |
| Approvals | UL / FM |
| HS Code | NLR, EAR99 |
| Shipping Weight | 450 lbs |
| Lead Time | 7 Weeks |
