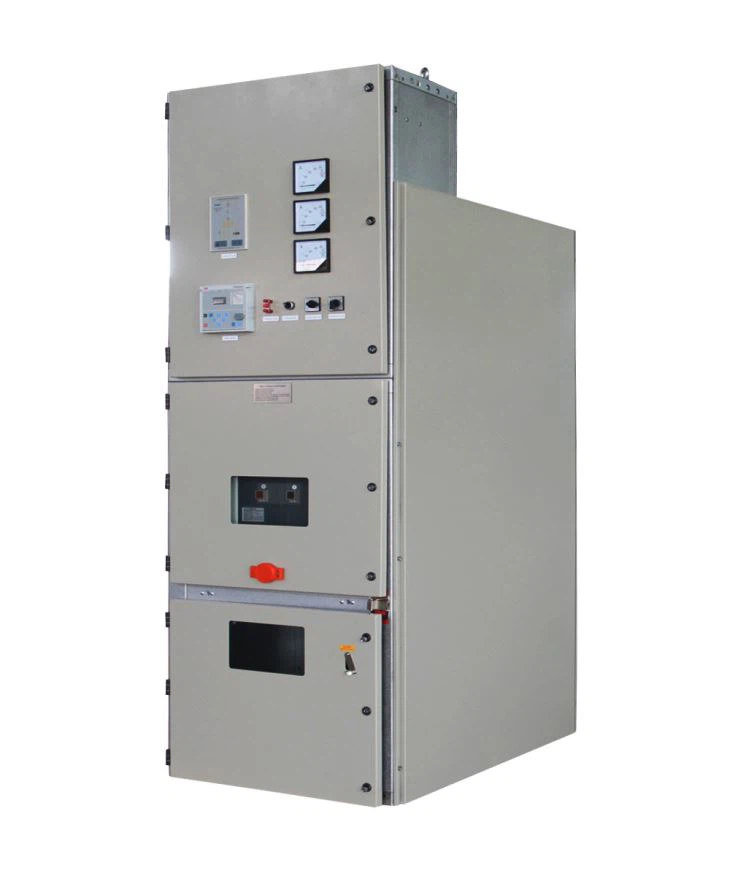

ORION OR‑TN‑13.8KV/800A/10 Outdoor Medium Voltage Cabinet
$ 21,915Each
Lead Time : 2‑4 Weeks
Ex-Works : USA
Key Features
-
Built for outdoor medium‑voltage distribution in harsh environments
-
Stainless‑steel enclosure provides long‑term corrosion resistance and durability
-
Rated for 13.8 kV voltage class and 800 A current, ideal for utility and industrial networks
-
Integrated current transformers (CT) and optional intelligent monitoring for system diagnostics
-
Designed for reliable fault handling and short‑time withstand performance in distribution applications
ORION OR‑TN‑13.8KV/800A/10 Outdoor Medium Voltage Cabinet
The ORION OR‑TN‑13.8KV/800A/10 outdoor medium voltage electrical cabinet is a purpose‑built outdoor service distribution unit engineered for high‑voltage network applications. Designed to operate reliably in harsh external environments, it accommodates rated currents up to 800 A and system voltages of 13.8 kV with short‑time withstand and fault handling capabilities. Built with 201‑grade stainless steel for robust corrosion resistance, this unit integrates current transformers (CT) and an optional intelligent monitoring device for advanced protection and system diagnostics, making it suitable for power distribution networks, substations, industrial plants, and utility grid infrastructure.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | ORION |
| Product Type | Outdoor Medium Voltage Electrical Cabinet |
| Part Number | OR‑TN‑13.8KV/800A/10 |
| Function | Outdoor medium‑voltage distribution and protection unit |
| Service | Outdoor |
| Rated Voltage | 13.8 kV |
| Rated Current | 800 A |
| Resistance/Impedance | 10 (rated specification) |
| Rated Fault Time Duration | 5 s |
| Rated Fault Current | 800 A |
| Cabinet Material | 201 Stainless Steel |
| Optional Devices | Current Transformer (CT), Intelligent Monitoring Device (NS‑DZK) |
| Environmental Protection | Outdoor‑ready enclosure (weather, dust protection) |
| Mounting | Free‑standing outdoor electrical cabinet |
