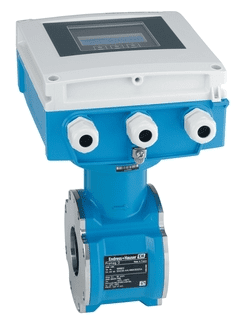

Proline Promag D 400 / 5D4C Flowmeter

The Proline Promag D 400 / 5D4C Flowmeter is optimized for basic water applications in tight spaces and plastic pipe setups. With innovative maintenance-free technology, it features easy sensor centering, an energy-efficient design with no pressure loss, and a user-friendly touch-controlled display. It provides reliable measurement for volume and mass flow, accommodating a wide range of diameters (DN 25 to 100) and medium temperatures (0 to +60 °C). Its robust housing and advanced digital communication options ensure durability and versatility in any environment.

Add to Wishlist
Add to Wishlist
Category: Tag:
Trust Badge Image

Description

Part Number: 5D4C

Product Headline:
Optimized for basic water applications, ideal for limited space and plastic pipe installations.

Sensor Features:

  • Innovative Housing: Easy, fast centering of the sensor.
  • Energy Efficiency: No pressure loss due to cross-section constriction.
  • Maintenance-Free: No moving parts.

Transmitter Features:

  • User-Friendly: Safe operation with a touch-controlled, backlit display; no need to open the device.
  • Integrated Web Server: Enables time-saving local operation without additional software and hardware.
  • Heartbeat Technology: Built-in verification for added reliability.
  • Durable Housing: Made of polycarbonate or aluminum, with WLAN access and an integrated data logger.

Nominal Diameter Range:
DN 25 to 100 (1″ to 4″)

Wetted Materials:

  • Liner: Polyamide
  • Electrodes: 1.4435 (316L)

Measured Variables:
Volume flow, Mass flow

Max. Measurement Error:
Volume flow: ±0.5 % of reading ± 1 mm/s (0.04 in/s)

Measuring Range:
9 to 4700 dm³/min (2.5 to 1250 gal/min)

Max. Process Pressure:
PN 16, Class 150, 10K

Medium Temperature Range:
0 to +60 °C (+32 to +140 °F)

Ambient Temperature Range:
–20 to +60 °C (–4 to +140 °F)

Sensor Housing Material:
AlSi10Mg, coated

Transmitter Housing Material:
Polycarbonate; AlSi10Mg, coated

Degree of Protection:

  • Compact Version: IP66/67, type 4X enclosure
  • Sensor Remote Version: IP66/67, type 4X enclosure
  • Transmitter Remote Version: IP66/67, type 4X enclosure

Display/Operation:

  • Display: 4-line backlit display with touch control.
  • Configuration: Via local display, web browser, and operating tools.

Outputs:

  • 3 outputs:
    • 0-20 mA/4-20 mA HART (active)
    • Pulse/frequency/switch output (passive)
    • Pulse/frequency output (passive)
    • Switch output (passive)

Inputs:
Status input

Digital Communication:
HART, PROFIBUS DP, EtherNet/IP, Modbus RS485

Power Supply:
AC 100 to 240 V / AC/DC 24 V

Hazardous Area Approvals:
cCSAus

Product Safety:
CE, C-tick, EAC marking

Metrological Approvals and Certificates:
Calibration performed at accredited facilities (ISO/IEC 17025), NAMUR

Pressure Approvals and Certificates:
CRN

Hygienic Approvals and Certificates:
ACS, KTW/W270, NSF 61, WRAS BS 6920
