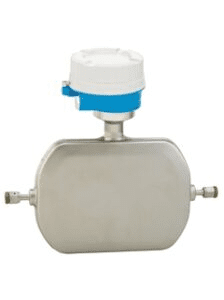

Proline Promass A 500 / 8A5C Coriolis Flowmeter

The Proline Promass A 500 is an accurate single-tube flowmeter designed for low flow rates, featuring a compact, remote transmitter with up to 4 I/Os. It offers reliable measurement of mass flow, density, and temperature in harsh environments, with a process pressure rating of up to 430.9 bar and medium temperature of -50 to +205 °C. Built for versatility, it includes Heartbeat Technology for integrated verification and extensive digital communication options. Ideal for various industrial applications.

4o mini
Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

Part Number: 8A5C

Measuring Principle:
Coriolis

Product Headline:
Accurate single-tube flowmeter for lowest flow rates, as a remote version with up to 4 I/Os. Suitable for applications with the smallest flow quantities in all industries.

Sensor Features:

  • Space-Saving Installation: Compact, lightweight sensor.
  • Highest Product Quality: Self-drainable measuring tube design in all line sizes.
  • Optimum Process Safety: Resistant to corrosive ambient conditions and internal clogging.

Specifications:

  • Nominal Diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈”)
  • Process Pressure: Up to 430.9 bar (6250 psi)
  • Medium Temperature: Up to +205 °C (+401 °F)

Transmitter Features:

  • Full Access to Process and Diagnostic Information: Numerous, freely combinable I/Os and fieldbuses.
  • Reduced Complexity and Variety: Freely configurable I/O functionality.
  • Integrated Verification: Heartbeat Technology.
  • Remote Version: With up to 4 I/Os.
  • Backlit Display: With touch control and WLAN access.
  • Standard Cable: Between sensor and transmitter.

Nominal Diameter Range:
DN 1 to 4 (¹⁄₂₄ to ¹⁄₈”)

Wetted Materials:

  • Measuring Tube: Stainless steel, 1.4435 (316/316L); Alloy C22

Measured Variables:
Mass flow, Density, Temperature, Volume flow, Corrected volume flow, Reference density

Max. Measurement Error:

  • Mass Flow (Liquid): ±0.1 %
  • Volume Flow (Liquid): ±0.1 %
  • Mass Flow (Gas): ±0.35 %
  • Density (Liquid): ±0.0005 g/cm³

Measuring Range:
0 to 450 kg/h (0 to 16.54 lb/min)

Max. Process Pressure:
430.9 bar (6250 psi)

Medium Temperature Range:
-50 to 205 °C (-58 to 401 °F)

Ambient Temperature Range:
-40 to 60 °C (-40 to +140 °F)

Sensor Housing Material:
Stainless steel, 1.4404 (316L)

Transmitter Housing Material:
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Degree of Protection:

  • Sensor Remote Version (Standard): IP66/67, type 4X enclosure
  • Sensor Remote Version (Option): IP69
  • Transmitter Remote Version: IP66/67, Type 4X enclosure

Display/Operation:
4-line backlit display with touch control (operation from outside). Configuration via local display and operating tools possible.

Outputs:

  • 4 Outputs:
    • 4-20 mA HART (active/passive)
    • 4-20 mA WirelessHART
    • 4-20 mA (active/passive)
    • Pulse/frequency/switch output (active/passive)
    • Double pulse output (active/passive)
    • Relay output

Inputs:

  • Status input
  • 4-20 mA input

Digital Communication:
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

Power Supply:

  • DC 24 V
  • AC 100 to 230 V
  • AC 100 to 230 V / DC 24 V (non-hazardous area)

Hazardous Area Approvals:
ATEX, IECEx, cCSAus, INMETRO, NEPSI

Product Safety:
CE, C-TICK

Functional Safety:
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511.

Metrological Approvals and Certificates:
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025). Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation).

Pressure Approvals and Certificates:
CRN

Material Certificates:
3.1 material

Hygienic Approvals and Certificates:
3-A, cGMP
