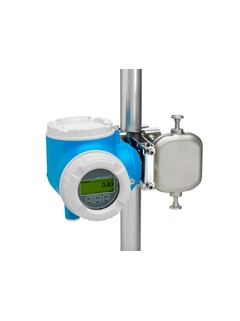

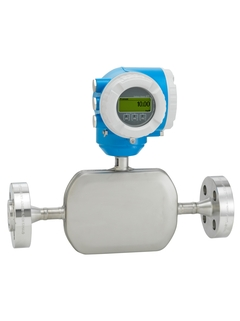

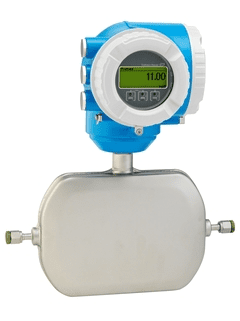

Description
Part Number: 8A3C
Measuring Principle:
Coriolis
Product Headline:
Accurate single-tube flowmeter for lowest flow rates with a compact, easily accessible transmitter. Suitable for applications with smallest flow quantities in all industries.
Sensor Features:
- Space-Saving Installation: Compact, lightweight sensor.
- Highest Product Quality: Self-drainable measuring tube design in all line sizes.
- Optimum Process Safety: Resistant to corrosive ambient conditions and internal clogging.
Specifications:
- Nominal Diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈”)
- Process Pressure: Up to 430.9 bar (6250 psi)
- Medium Temperature: Up to +205 °C (+401 °F)
Transmitter Features:
- Full Access to Process and Diagnostic Information: Numerous, freely combinable I/Os and fieldbuses.
- Reduced Complexity and Variety: Freely configurable I/O functionality.
- Integrated Verification: Heartbeat Technology.
- Compact Dual-Compartment Housing: With up to 3 I/Os.
- Backlit Display: With touch control and WLAN access.
- Remote Display Available.
Nominal Diameter Range:
DN 1 to 4 (¹⁄₂₄ to ¹⁄₈”)
Wetted Materials:
- Measuring Tube: Stainless steel, 1.4435 (316/316L); Alloy C22
Measured Variables:
Mass flow, Density, Temperature, Volume flow, Corrected volume flow, Reference density
Max. Measurement Error:
- Mass Flow (Liquid): ±0.1 %
- Volume Flow (Liquid): ±0.1 %
- Mass Flow (Gas): ±0.35 %
- Density (Liquid): ±0.0005 g/cm³
Measuring Range:
0 to 450 kg/h (0 to 16.54 lb/min)
Max. Process Pressure:
430.9 bar (6250 psi)
Medium Temperature Range:
-50 to 205 °C (-58 to 401 °F)
Ambient Temperature Range:
-40 to 60 °C (-40 to +140 °F)
Sensor Housing Material:
Stainless steel, 1.4404 (316L)
Transmitter Housing Material:
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic transmitter design
Degree of Protection:
- Compact version: IP66/67, type 4X enclosure
- External WLAN antenna: IP67, IP69
Display/Operation:
4-line backlit display with touch control (operation from outside). Configuration via local display and operating tools possible. Remote display available.
Outputs:
- 3 Outputs:
- 4-20 mA HART (active/passive)
- 4-20 mA WirelessHART
- 4-20 mA (active/passive)
- Pulse/frequency/switch output (active/passive)
- Double pulse output (active/passive)
- Relay output
Inputs:
- Status input
- 4-20 mA input
Digital Communication:
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA
Power Supply:
- DC 24 V
- AC 100 to 230 V
- AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals:
ATEX, IECEx, cCSAus, INMETRO, NEPSI, UK Ex
Product Safety:
CE, C-TICK
Functional Safety:
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511.
Metrological Approvals and Certificates:
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025). Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation).
Pressure Approvals and Certificates:
CRN
Material Certificates:
3.1 material
Hygienic Approvals and Certificates:
3-A, cGMP
