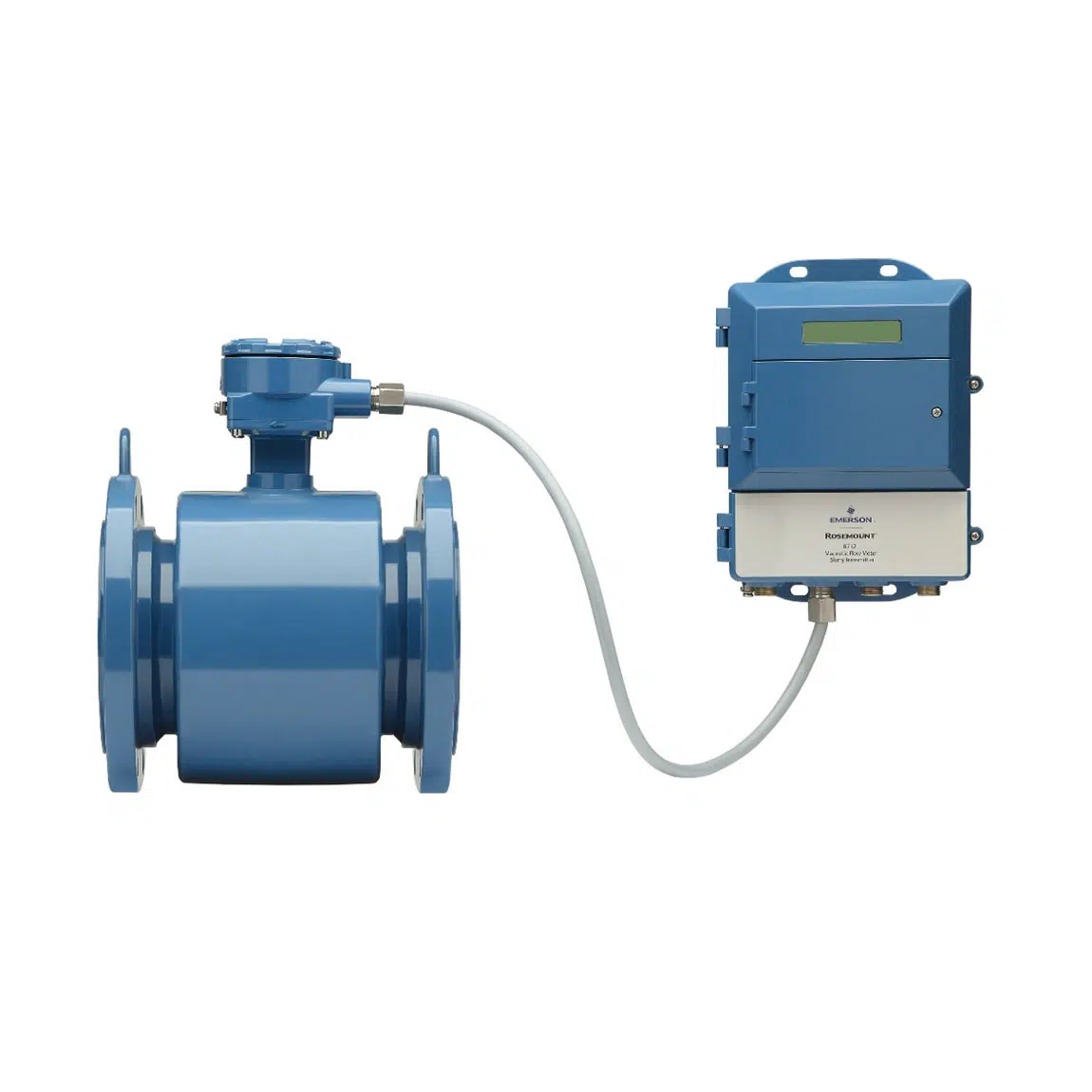

ROSEMOUNT EMERSON Magnetic Flow Meter 8″ Slip-On Flange RF150 Sensor Transmitter 5M Cable Assembly
$ 5,450
Part No:
Sensor : 8705NSE080C1W0N0Q4Q8WC
Transmitter : 8732ESR2A1N0DA1DA2M4B6Q4WC
5M Cable Assembly: 08732-0753-2004
-
8” slip-on RF#150 flanged connection for seamless integration
-
Magnetic flow measurement for high-accuracy readings
-
Operates on 24 VDC power supply
-
Complete system includes sensor, transmitter, and cable assembly
-
IP65 enclosure for protection in demanding environments
-
FM, CSA, and CE approved for use in hazardous areas
ROSEMOUNT EMERSON Magnetic Flow Meter – 8″ Slip-On Flange RF#150, Sensor + Transmitter + 5M Cable Assembly
The Rosemount Emerson magnetic flow meter assembly is a complete, high-accuracy solution for industrial fluid measurement. It includes a magnetic flow sensor, a digital transmitter, and a 5-meter pre-assembled cable with mounting brackets and clamps. Designed for use in hazardous environments, the system offers excellent performance in applications requiring precision, durability, and compliance with industrial standards. With an 8″ slip-on RF#150 flange connection, this flow meter handles ranges from 0 to 400 m³/hr and operates on 24 VDC. Its IP65-rated enclosure and approvals such as FM Class 1 Div 2, CSA, and CE make it ideal for oil & gas, chemical processing, and utility applications.
| Feature | Specification |
|---|---|
| Flow Meter Type | Magnetic |
| Size | 8 inch |
| Flow Range | 0 to 400 m³/hr |
| Design Rating | 4 kg/cm² g |
| Connection Type | Slip-On Flange RF#150 |
| Material | CS A53 Grade B |
| Operating Voltage | 24 VDC |
| Enclosure Rating | IP65 |
| Classification | FM Class 1 Div 2, CSA Class 1 Div 2, CE Marked |
| Assembly Includes | Flow Sensor, Transmitter, 5M Cable with Brackets |
