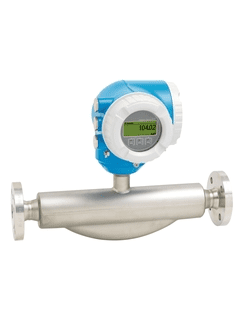

Description
Part Number: 8F3B
Measuring Principle:
Coriolis
Product Headline:
Premium accuracy, robustness, and a compact, accessible transmitter designed for demanding process conditions, ensuring highest measurement performance for liquids and gases.
Sensor Features:
- Process Safety: Immune to fluctuating and harsh environments.
- Multivariable Measurement: Flow, density, and temperature measured simultaneously.
- Space-Saving Installation: No need for in-/outlet runs.
- Mass Flow Measurement Error: ±0.05 % (PremiumCal).
- Temperature Range: Medium temperature from –196 to 350 °C (–320 to 662 °F).
- Nominal Diameter: DN 8 to 250 (â…œ to 10″).
Transmitter Features:
- Comprehensive Access: Full process and diagnostic information with flexible I/O and fieldbus options.
- Configurable I/O Functionality: Reduced complexity with customizable options.
- Integrated Verification: Heartbeat Technology.
- Compact Housing: Dual-compartment design with up to 3 I/Os.
- User-Friendly Display: Backlit display with touch control and WLAN access; remote display option available.
Nominal Diameter Range:
DN 8 to 250 (â…œ to 10″)
Wetted Materials:
- Measuring Tube: 1.4539 (904L), 1.4404 (316/316L), Alloy C22 (2.4602/UNS N06022)
- Connection: 1.4404 (316/316L), Alloy C22 (2.4602/UNS N06022), 1.4301 (F304)
Measured Variables:
Mass flow, Density, Temperature, Volume flow, Corrected volume flow, Reference density, Concentration
Max. Measurement Error:
- Mass Flow (Liquid): ±0.10 % (standard), ±0.05 % (option)
- Volume Flow (Liquid): ±0.10 %
- Mass Flow (Gas): ±0.25 %
- Density (Liquid): ±0.0005 g/cm³
Measuring Range:
0 to 2,200,000 kg/h (0 to 80,840 lb/min)
Max. Process Pressure:
PN 100, Class 600, 63K
Medium Temperature Range:
- Standard: –50 to +150 °C (–58 to +302 °F)
- Options:
- –50 to +240 °C (–58 to +464 °F)
- –50 to +350 °C (–58 to +662 °F)
- –196 to +150 °C (–320 to +302 °F)
Ambient Temperature Range:
- Standard: –40 to +60 °C (–40 to +140 °F)
- Option: –50 to +60 °C (–58 to +140 °F)
Sensor Housing Material:
- Standard: 1.4301 (304)
- Option: 1.4404 (316/316L)
Transmitter Housing Material:
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic design
Degree of Protection:
- Compact Version: IP66/67, type 4X enclosure
- External WLAN Antenna: IP67
- Additional Protection: IP69
Display/Operation:
- Display: 4-line backlit display with touch control for external operation.
- Configuration: Via local display and operating tools; remote display available.
Outputs:
- 3 outputs:
- 4-20 mA HART (active/passive)
- 4-20 mA WirelessHART
- Pulse/frequency/switch output (active/passive)
- Double pulse output (active/passive)
- Relay output
Inputs:
- Status input
- 4-20 mA input
Digital Communication:
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power Supply:
- DC 24 V
- AC 100 to 230 V
- AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals:
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product Safety:
CE, C-tick, EAC marking
Functional Safety:
Complies with IEC 61508 for safety-relevant applications as per IEC 61511
Metrological Approvals and Certificates:
- Calibration at accredited facilities (ISO/IEC 17025)
- Heartbeat Technology complies with ISO 9001:2015 requirements for measurement traceability (TÃœV SÃœD attestation)
- MI-005 (Liquids other than water, Hydrocarbons, LPG, cryogenic liquids)
- NTEP (Liquids other than water, LPG, cryogenic liquids)
- MC (Liquids other than water, gases, cryogenic liquids)
- MI-002, PTB
Marine Approvals and Certificates:
LR approval, DNV approval, ABS approval, BV approval, CCS approval
Pressure Approvals and Certificates:
PED, CRN, AD 2000
Material Certificates:
3.1 material, NACE MR0175/MR0103, PMI; welding tests per EN ISO, ASME, NORSOK
Hygienic Approvals and Certificates:
3-A, EHEDG, cGMP
