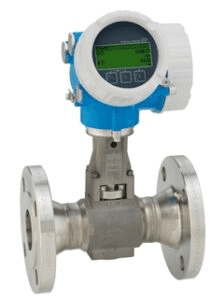

Proline Prowirl F 200 / 7F2C Vortex Flowmeter

The Proline Prowirl F 200 is a versatile vortex flowmeter ideal for steam and gas applications, featuring best-in-class accuracy and wet steam detection. Designed for DN 15 to 300 (½ to 12″) pipes, it offers integrated temperature and pressure measurement, robust housing, and easy installation. With Heartbeat Technology for diagnostics and compliance with global safety standards, it’s the perfect solution for efficient energy management in various industries.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

Part Number: 7F2C

Measuring Principle:
Vortex

Product Headline:
Versatile flowmeter with detection of wet steam conditions and best-in-class accuracy. Easy energy management with integrated temperature and pressure measurement for steam and gases. Suitable for a wide range of applications, optimized for steam applications.

Sensor Features:

  • Space-Saving Engineering: Inlet run compensation for efficient installation.
  • Consistent Accuracy: Same accuracy down to Reynolds number (Re) 10,000; features the most linear vortex meter body.
  • Long-Term Stability: Robust, drift-free capacitive sensor ensures reliable performance.
  • Wet Steam Capabilities: Effective measurement for DN 25 to 300 (1 to 12″).
  • Flexible Positioning: Adjustable pressure cell for optimal installation.
  • Industrial Siphon Design: Enhanced pressure measurement capabilities.

Transmitter Features:

  • Convenient Wiring: Separate connection compartment simplifies installation.
  • Safe Operation: Display with touch control and background lighting eliminates the need to open the device.
  • Integrated Verification: Heartbeat Technology for diagnostics and monitoring.
  • Display Module: Data transfer function for efficient monitoring.
  • Robust Housing: Dual-compartment design for enhanced durability.
  • Plant Safety: Worldwide approvals including SIL and hazardous area certifications.

Nominal Diameter Range:
DN 15 to 300 (½ to 12″)

Wetted Materials:

  • Measuring Tube: 1.4408 (CF3M); CX2MW similar to Alloy C22, 2.4602
  • DSC Sensor: 1.4404 (316/316L); UNS N06022 similar to Alloy C22, 2.4602
  • Process Connection: 1.4404 / F316 / F316L; 2.4602

Measured Variables:

  • Volume flow
  • Mass flow
  • Corrected volume flow
  • Energy flow
  • Heat flow difference
  • Temperature

Max. Measurement Error:

  • Volume Flow (Liquid): ±0.75%
  • Volume Flow (Optional): ±0.65%
  • Volume Flow (Steam, Gas): ±1.00%
  • Mass Flow (Saturated Steam): ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)
  • Mass Flow (Superheated Steam, Gas): ±1.5% (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)
  • Mass Flow (Liquid): ±0.85%

Measuring Range:

  • Liquid: 0.076 to 2100 m³/h (0.045 to 1300 ft³/min) at 1 bar a, 20 °C (14.5 psi a, 68 °F)
  • Steam, Gas: 0.39 to 28000 m³/h (0.23 to 17000 ft³/min) depending on medium conditions.

Max. Process Pressure:
PN 100, Class 600, 20K

Medium Temperature Range:

  • Standard: –40 to +260 °C (–40 to +500 °F)
  • High/Low Temperature (Option): –200 to +400 °C (–328 to +752 °F)

Ambient Temperature Range:

  • Compact Version (Standard): –40 to +80 °C (–40 to +176 °F)
  • Compact Version (Option): –50 to +80 °C (–58 to +176 °F)
  • Remote Version (Standard): –40 to +85 °C (–40 to +185 °F)
  • Remote Version (Option): –50 to +85 °C (–58 to +185 °F)

Sensor Housing Material:
Sensor Connection Housing: AlSi10Mg, coated; 1.4408 (CF3M)

Transmitter Housing Material:
Transmitter Housing: AlSi10Mg, coated; 1.4404 (316L)

Degree of Protection:

  • Compact Version: IP66/67, Type 4X enclosure
  • Sensor Remote Version: IP66/67, Type 4X enclosure
  • Transmitter Remote Version: IP66/67, Type 4X enclosure

Display/Operation:
4-Line Backlit Display with Touch Control (operation from outside). Configuration via local display and operating tools is possible. Remote display available.

Outputs:
4 Outputs:

  • 4-20 mA HART (passive)
  • 4-20 mA (passive)
  • Pulse/frequency/switch output (passive)

Inputs:
Current Input: 4-20 mA (passive)

Digital Communication:
HART, PROFIBUS PA, FOUNDATION Fieldbus

Power Supply:

  • DC 12 to 35 V: 4-20 mA HART with/without pulse/frequency/switch output
  • DC 12 to 30 V: 4-20 mA HART, 4-20 mA
  • DC 12 to 35 V: 4-20 mA HART, pulse/frequency/switch output, 4-20 mA input
  • DC 9 to 32 V: PROFIBUS PA, pulse/frequency/switch output

Hazardous Area Approvals:
ATEX, IECEx, cCSAus, JPN, EAC

Product Safety:
CE, C-TICK, EAC, UK Ex

Functional Safety:
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511.

Metrological Approvals and Certificates:

  • Calibration: Performed in accredited calibration facilities (acc. to ISO/IEC 17025).
  • Heartbeat Technology: Complies with measurement traceability requirements according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation).

Marine Approvals and Certificates:
ABS, LR, BV, DNV

Pressure Approvals and Certificates:
PED, CRN, AD 2000

Material Certificates:

  • 3.1 Material
  • NACE MR0175/MR0103, PMI (on request)
  • Welding Test according to ISO 15614‐1, similar to ASME IX (on request)
