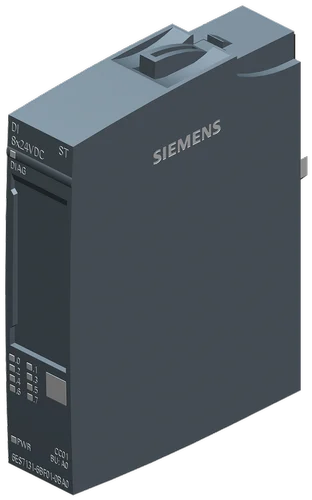

Siemens SIMATIC ET 200SP Digital Input Module DI 16x 24V DC ST 6ES7131-6BH01-0BA0
$ 90
Lead Time: 1 Week
Ex-Works: Arizona USA
Shipping:
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.
6ES7131-6BH01-0BA0
-
ET 200SP Digital Input Module DI 16x 24V DC ST
-
16 digital inputs, P-reading (sink) configuration
-
Parameterizable input delay (0.05–20 ms)
-
Supports 2-wire sensor connection
-
Diagnostics for supply voltage, wire-break, group error
-
BU type A0 compatible
-
Compact size: 15 × 73 × 58 mm
-
Weight approx. 28 g
Siemens SIMATIC ET 200SP Digital Input Module DI 16x 24V DC ST 6ES7131-6BH01-0BA0
The SIMATIC ET 200SP Digital Input Module DI 16x 24V DC ST (6ES7131-6BH01-0BA0) provides 16 digital inputs with P-reading (sink) configuration and full diagnostics support. It is compatible with BU type A0 BaseUnits and ideal for industrial automation and PROFINET/PROFIBUS applications, offering reliable performance with parameterizable input delays and support for 2-wire sensors.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | DI 16x 24V DC ST |
| Part Number / Model | 6ES7131-6BH01-0BA0 |
| HW Functional Status | From FS02 |
| Firmware Version | V0.0 |
| FW Update Possible | No |
| Usable BaseUnits | BU type A0 |
| Color Code | CC00 |
| I&M Data | I&M0 to I&M3 |
| Isochronous Mode | No |
| PROFINET R1 IM Support | Yes |
| STEP 7 TIA Portal Configurable from Version | V14 |
| STEP 7 Configurable from Version | V5.5 SP3 |
| PCS 7 Configurable from Version | V8.1 SP1 |
| PCS neo Configurable from Version | from V1.0.0 |
| PROFIBUS GSD Revision | 3 and 5+ |
| PROFINET GSDML Version | V2.3 |
| Supply Voltage | 24 V DC |
| Permissible Range | 19.2–28.8 V DC |
| Reverse Polarity Protection | Yes |
| Current Consumption | Max. 90 mA |
| 24V Encoder Supply | No |
| Power Loss | Typ. 1.7 W |
| Address Space | Inputs: 2 byte + 2 byte QI info |
| Automatic Encoding | Yes |
| Mechanical Coding Element | Type A |
| Number of Digital Inputs | 16 |
| Digital Inputs Parameterizable | Yes |
| Input Type | Sink (P-reading) |
| IEC 61131 Input Type | Type 3 |
| Input Voltage | Signal “0”: -30 to +5 V, Signal “1”: +11 to +30 V |
| Input Current (Typ) | 2.5 mA |
| Input Delay Parameterizable | 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms |
| Max Cable Length | Shielded: 1000 m, Unshielded: 600 m |
| Connectable Encoders | 2-wire sensor, max quiescent 1.5 mA |
| Diagnostics Function | Yes |
| Monitoring | Supply voltage, wire-break (optional), group error |
| Diagnostics LEDs | PWR: Green, Module DIAG: Green/Red |
| Potential Separation | Channels vs backplane bus: Yes |
| Isolation Tested | 707 V DC |
| Ambient Temperature | Horizontal: -30 to 60 °C, Vertical: -30 to 50 °C |
| Maximum Installation Altitude | 5000 m |
| Dimensions (W×H×D) | 15 × 73 × 58 mm |
| Weight | 28 g |
