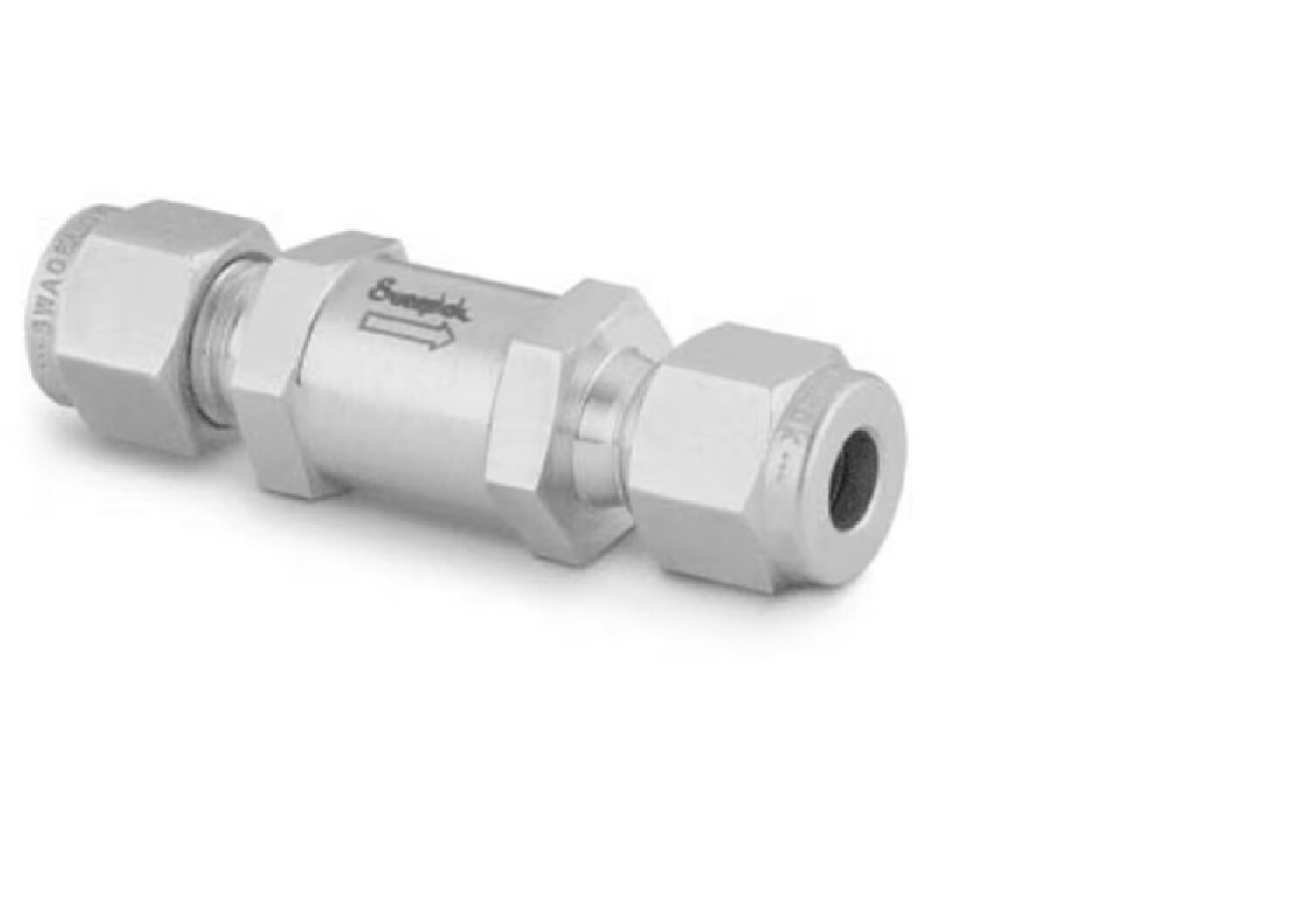

Stainless Steel Poppet Check Valve, Fixed Pressure, 10 mm Swagelok Tube Fitting, 1/3 psig (0.03 bar).? SS-10C-MM-1/3
$ 235
Part No: SS-10C-MM-1/3
Stainless Steel Poppet Check Valve, Fixed Pressure with a 10 mm Swagelok Tube Fitting, featuring a 1/3 psig (0.03 bar) cracking pressure. This valve includes an FKM O-ring and offers a CV of 1.68 for dependable performance.
Description
| Specification | Details |
|---|---|
| Part No: | SS-10C-MM-1/3 |
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 10 mm |
| Connection 1 Type | Swagelok? Tube Fitting |
| Connection 2 Size | 10 mm |
| Connection 2 Type | Swagelok? Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| O-Ring Material | Fluorocarbon FKM |
| Cracking Pressure | 1/3 psi (0.03 bar, 0.003 MPa) |
| CV Maximum | 1.68 |
