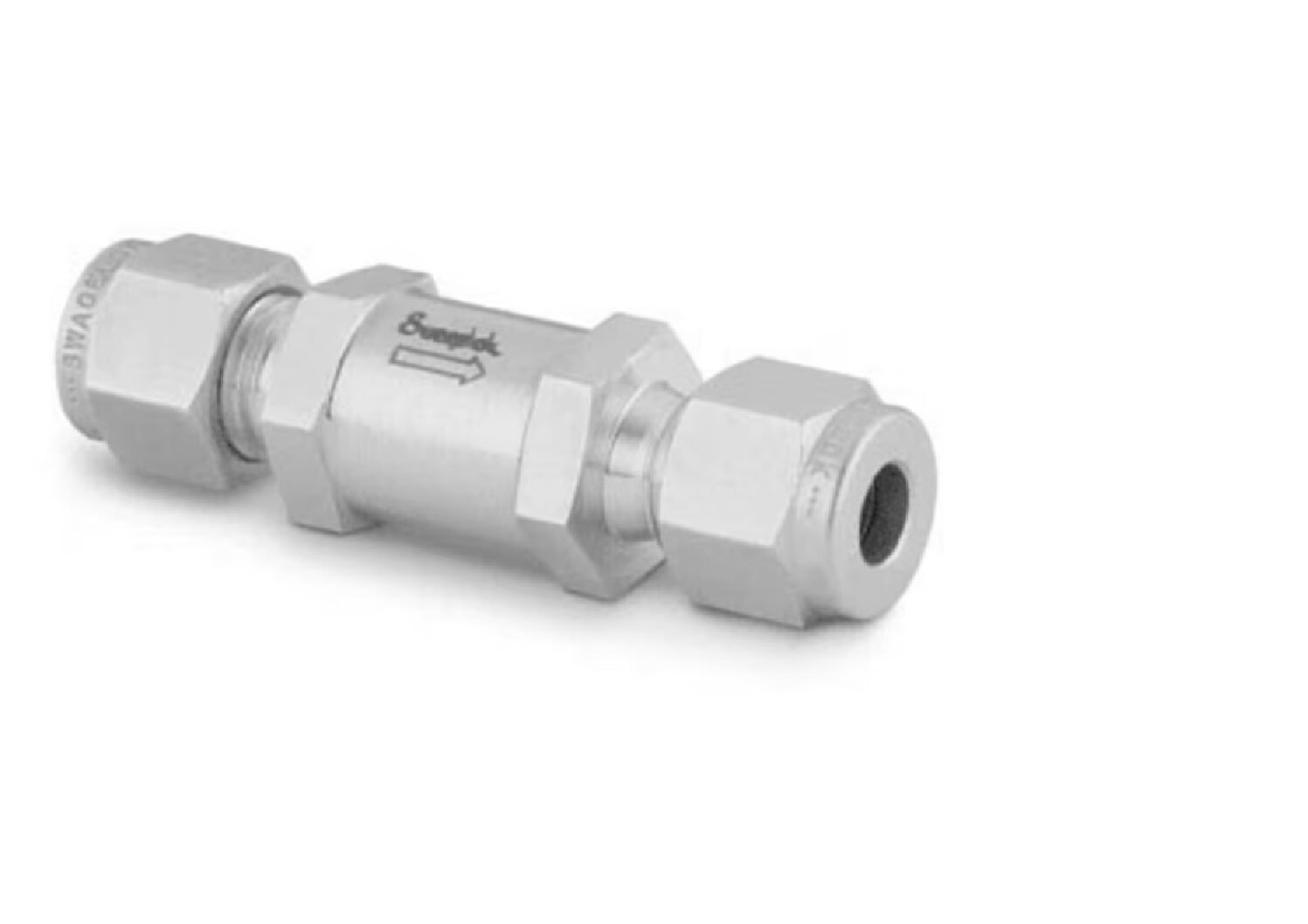

Stainless Steel Poppet Check Valve, Fixed Pressure, 10 mm Swagelok Tube Fitting, 1 psig (0.07 bar). SS-10C-MM-1

Name: Stainless Steel Poppet Check Valve, Fixed Pressure, 10 mm Swagelok Tube Fitting, 1 psig (0.07 bar). SS-10C-MM-1
SKU: 2601
Availability: InStock

$234.00

Part No: SS-10C-MM-1

Stainless Steel Poppet Check Valve, Fixed Pressure with a 10 mm Swagelok Tube Fitting, featuring a 1 psig (0.07 bar) cracking pressure. This valve includes an FKM O-ring and offers a CV of 1.68 for reliable performance.

Product successfully added to the Quote List

Category: Stainless Steel Fittings

Description
Reviews (0)

Description

Specification	Details
Part No:	SS-10C-MM-1
Body Material	316 Stainless Steel
Connection 1 Size	10 mm
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	10 mm
Connection 2 Type	Swagelok® Tube Fitting
Cleaning Process	Standard Cleaning and Packaging (SC-10)
O-Ring Material	Fluorocarbon FKM
Cracking Pressure	1 psi (0.07 bar, 0.007 MPa)
CV Maximum	1.68
