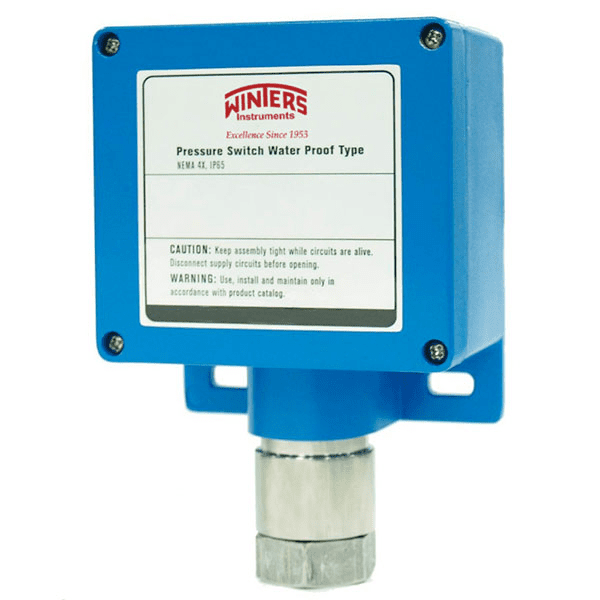

3WPS VACUUM AND LOW PRESSURE SWITCH 3WPSV1306F2F201 WinSMART™

$1,904.00

Part No: 3WPSV1306F2F201
3WPS VACUUM AND LOW PRESSURE SWITCH
The 3WPSV1306F2F201 is designed for vacuum pressures down to -25/-760 MMHG with a 1% accuracy and fixed deadband. This pressure switch features a Viton o-ring and 316 stainless steel wetted parts, making it suitable for industrial, HVAC, and compressor monitoring applications. NEMA 4 & 4X, IP66 ratings ensure durability in tough conditions, while the field-selectable set point offers flexibility in use.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description



3WPSV, AL + SS + VITON, -25/-760 MMHG SPDT FIXED, 1/2″ & 1/2″ NPT F, 1%

Feature Details
Housing Material Heavy-duty die-cast aluminum, blue color
Accuracy +/- 1% of the adjustable set-point range
Pressure Connection 1/2” NPT, BSP, M20xP1.5
Electrical Connection Female 1/2” or 3/4” NPT, M20xP1.5
Wetted Parts 316 Stainless Steel welded (except for Vacuum range, Viton o-ring)
Set Point Adjustment Field selectable
Deadband Fixed
Contact Rating 15A @ 125/250VAC; 0.4A @ 125VDC; 3A @ 30VDC
Number of Contacts 1 x SPDT or 2 x SPDT
Ambient/Process Temperature -30 to 205 °C (-22 to 400 °F), Vacuum range: -5 to 150 °C (23 to 300 °F)
Enclosure Rating NEMA 4 & 4X, IP66
Protection Rating Protection against liquid and solid ingress
Approvals RU recognized (switch only), file #E12252; CRN registration pending
Weight 3.35 lbs (1.52 kg)
