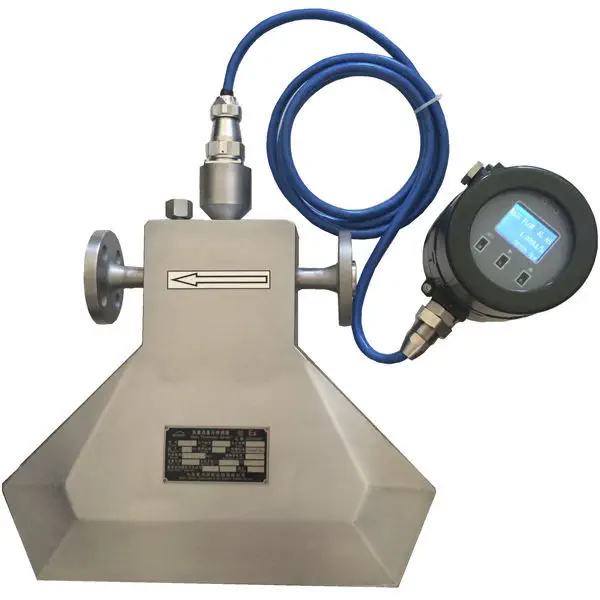

Coriolis Mass Flowmeter DN003 MTCMF-003
$ 2,190
Part No: MTCMF-003
-
Remote-type Coriolis flowmeter with 2-meter cable
-
SS316L measuring tube and SS304 housing construction
-
DIN flange DN10 PN40; 0.2% high-accuracy flow range
-
Explosion-proof rated (Ex db ia ⅡC T6 Gb), IP67 protection
Description
Coriolis Mass Flowmeter DN003 MTCMF-003
The MTCMF-003 Coriolis Mass Flowmeter is a high-precision industrial flow measurement instrument designed for accurate mass flow, density, and temperature monitoring. Built with SS316L measuring tube and SS304 housing, this remote-type flowmeter offers exceptional durability and performance in demanding environments, including explosive atmospheres.
| Specification | Details |
|---|---|
| Brand | – |
| Product Type | Coriolis Mass Flowmeter |
| Part Number | MTCMF-003 |
| Nominal Size | DN003 |
| Flow Range | 9.6 to 96 kg/hr |
| Flange Standard | DIN flange DN10 PN40 |
| Measuring Tube Material | SS316L |
| Housing Material | SS304 |
| Structure | Remote type, 2-meter cable |
| Transmitter | FT-522 |
| Accuracy | 0.2% |
| Display Content | Total flow, flow rate, temperature, density |
| Output Signal | 4~20mA / Pulse / RS485 |
| Power Supply | 220 VAC or 24 VDC |
| Design Temperature | -50 to +200°C |
| Ambient Temperature | -20 to +60°C |
| Protection | IP67 |
| Cable Entry | M20×1.5 |
| Nominal Pressure | 0–4 MPa |
| Explosion-proof Level | Ex db ia ⅡC T6 Gb |
| Gross Weight | 25 kg |
| Dimensions (mm) | 540 × 460 × 310 |
