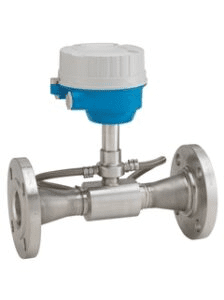

Prosonic Flow E Heat Ultrasonic Flowmeter / 9EHB

The Prosonic Flow E Heat Ultrasonic Flowmeter is an industrial-grade heat flow sensor designed for precise energy consumption measurement in heating and cooling systems. Fully compliant with custody transfer regulations, it offers long-term stability and high accuracy (±2% according to MI-004 and EN 1434). This robust sensor features an optimized design for fully insulated pipes, allowing for reliable flow measurement with a high turndown ratio. With a temperature range of up to 150 °C and a stainless steel housing, it’s ideal for various applications. Effortless operation is ensured with a locked pulse output and easy-to-read status indicators.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

Product Name: Prosonic Flow E Heat
Part Number: 9EHB

Measuring Principle:
Ultrasonic Flow

Product Headline:
Industrial, Certified Heat Flow Sensor for Improved Energy Consumption Measurement. Full compliance with custody transfer regulations. Ideal for energy management of water (e.g., heating and cooling) across all industries.

Sensor Features:

  • Long-Term Stability: Reliable sensor with robust industrial design.
  • Energy and Cost Savings: Optimized sensor for fully insulated pipes.
  • Dependable Flow Measurement: High turndown ratio.
  • Accuracy Class 2: Compliant with international approvals such as MI-004, EN 1434, OIML R75.
  • Material: Entire sensor housing made of stainless steel.
  • Process Temperatures: Up to 150 °C (302 °F).

Transmitter Features:

  • Effortless Operation: No commissioning needed; locked pulse output prevents unauthorized access.
  • Simple Process Indication: Direct reading of status information via color LEDs.
  • Increased Reliability: Comprehensive diagnostics available.
  • Certified Pulse Output: Cost-efficient, application-optimized transmitter.

Nominal Diameter Range:
DN 50 to 150 (2″ to 6″)

Wetted Materials:

  • Measuring Tube: 1.4301 (F304)
  • Process Connections: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1.4306 (F304L); 1.4307 (F304L); A105

Measured Variables:

  • Flow velocity
  • Sound velocity

Max. Measurement Error:

  • MID 004 Accuracy Class II: ±2%

Measuring Range:

  • Flow Velocity: 0.025 to 5 m/s (0.02 to 16.4 ft/s)
  • Volume Flow: 0 to 6360 dm³/min (0 to 1680 gal/min)

Max. Process Pressure:
PN 25 / ASME Cl. 150

Medium Temperature Range:
0 to 150 °C (17.8 to 302 °F)

Ambient Temperature Range:
-20 to 60 °C (-4 to 140 °F)

Sensor Housing Material:
Stainless Steel

Transmitter Housing Material:
Compact: AlSi10Mg, coated

Degree of Protection:

  • Standard: IP66/67, Type 4X enclosure
  • With Opened Housing: IP20, Type 1 enclosure

Display/Operation:
Direct Reading of Status Information via color LEDs.

Outputs:
Pulse/Frequency

Inputs:
None

Digital Communication:
None

Power Supply:
DC 19.2 to 28.8 V

Hazardous Area Approvals:
None

Product Safety:
CE, C-Tick, EAC Marking

Metrological Approvals and Certificates:
Calibration: Performed in accredited facilities (acc. to ISO/IEC 17025)

Pressure Approvals and Certificates:
PED

Material Certificates:
3.1 Material
