DPG Digital Pressure Gauge DPG221 / 0/2,000 PSI Winters Instrumentation

$526.20

Part Number: DPG221

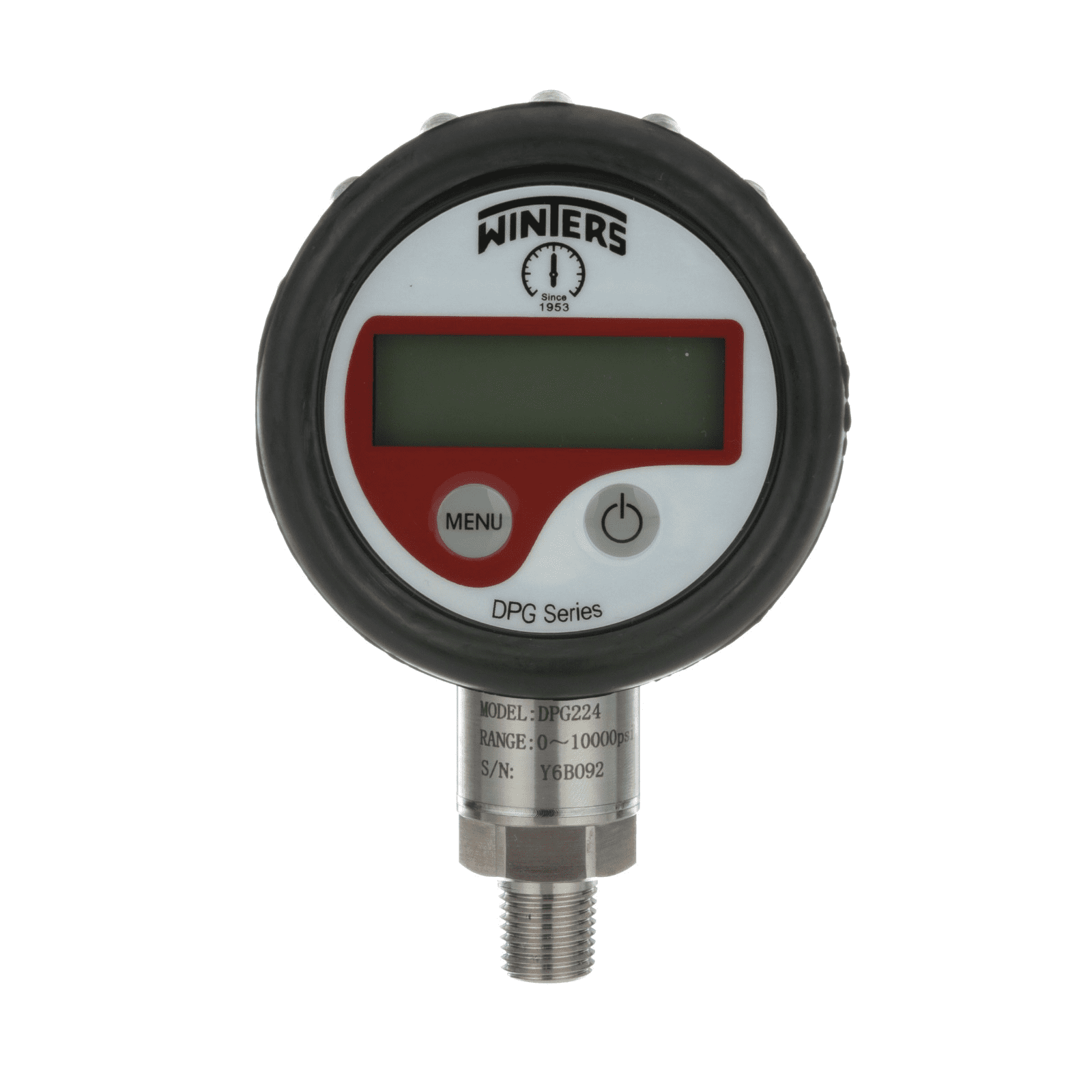

DPG Digital Pressure Gauge by Winters Instrumentation

The DPG221 Digital Pressure Gauge is designed for ease of use with its simple two-button operation and reset-to-zero feature. It includes a backlight for visibility and an option for continuous display, making it ideal for various environments. Constructed with a 316L welded diaphragm seal and a standard rubber boot, this gauge meets ASME B40.100 and RoHS compliance standards. With an accuracy of ±1% (±0.5% optional for gauges up to 10,000 psi) and a five-year warranty, the DPG221 is a reliable choice for commercial and industrial applications, delivering clear and fast pressure readings.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

  • Simple 2 button operation
  • Reset to zero feature
  • Backlight turns on when on/off button is pressed
  • Option for display to remain continuously on
  • Continuous Peak pressure indication option
  • 316L welded diaphragm seal
  • Rubber boot is standard
  • ASME B40.100 compliant
  • RoHS compliant
  • ±1% accuracy (±0.5% optional for gauges up to 10,000 psi)
  • 5 year warranty
  • Digital gauges are useful instruments for reading pressure values and provide fast results with clear visibility. If you’re looking for digital gauges, look no further! Our DPG Digital Pressure Gauge is one of the top-performing digital gauges in the market.
Ideal for commercial and industrial applications in both test measurement and general purpose installations
Case Size 2.5″ (63mm)
Case Material ABS
Rubber Boot Silicone rubber
LCD Display 2″ x 3/4″ (48mm x 16mm)
Connection 1/4″ NPT 304SS
Sensor 316L welded, Piezo
Operation Life 1 million cycles
Power Supply 2 x AAA battery (1.5V); Sold separately
Battery Life 2yrs (auto shut-off mode)
Power Mode Auto or manual shut-off
Display Digits 4 digits to 5,000 psi

5 digits for10,000 psi and 15,000 psi

Pressure Unit Selection psi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi

psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi

Response Time ≤ 3 Hz display refresh rate
Proof / Burst Pressure 200% / 300% FS
Operating / Storage Temperature Operating: 14°F to 122°F (-10°C to 50°C)

Storage: -4°F to 167°F (-20°C to 75°C)

Accuracy ±1% (±0.5% optional for gauges up to 10,000 psi)
Enclosure Rating IP60
