Metern Z Series Coriolis Mass Flowmeter DN50

$ 3,120

Lead Time: Contact us for lead time inquiry

Shipping:
Standard domestic shipping within the USA at a flat rate of $50.
Get a quote for international shipment.

DN50

Direct measurement of mass flow and fluid density with superior accuracy
Straight-tube design ensures high stability and repeatable measurements
Suitable for liquids, high-viscosity fluids, slurries, and industrial media
Measures density, temperature, and solute concentration online
Low installation requirements; flexible configuration
Ideal for petroleum, chemical, food, and pharmaceutical industries

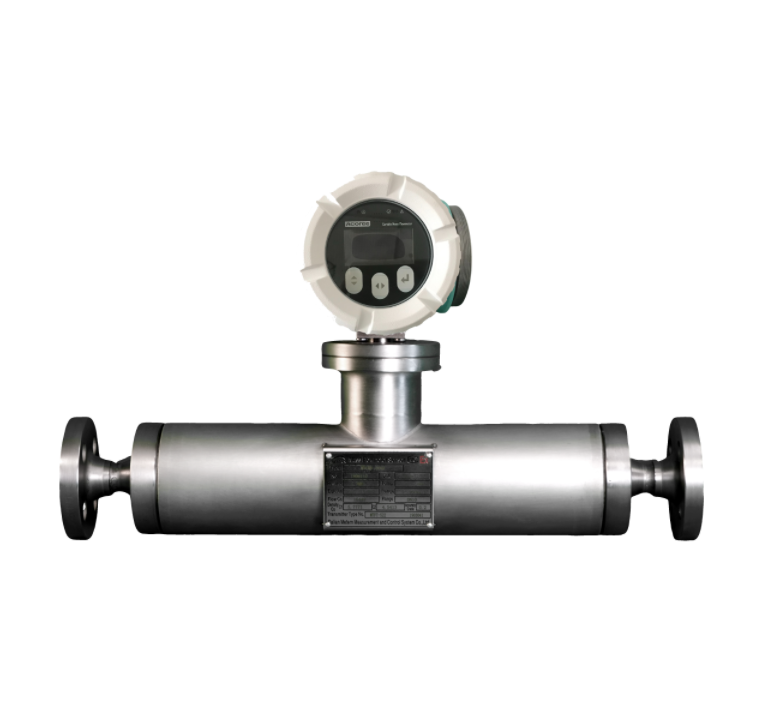

Metern Z Series Coriolis Mass Flowmeter DN50

The Metern Z Series Straight Tube Coriolis Mass Flowmeter is a high-precision instrument designed for direct mass flow and density measurement of liquids, slurries, and industrial fluids. Its straight-tube sensor provides exceptional accuracy and stability, making it ideal for demanding applications where repeatable and reliable measurements are required, even under harsh conditions.

Specification	Details
Nominal Diameter	DN50
Measurement Accuracy	Superior to 0.1%
Range Ratio	1:15 ~ 1:20
Working Pressure	0–25 MPa
Measuring Temperature	-200°C to 350°C
Ambient Temperature	-50°C to 60°C
Material	316L / 304 / Hastelloy
Output Signal	Pulse, 4–20mA, RS485
Working Power Supply	24VDC / 220VAC
Installation Mode	Flange, Thread, Clamp

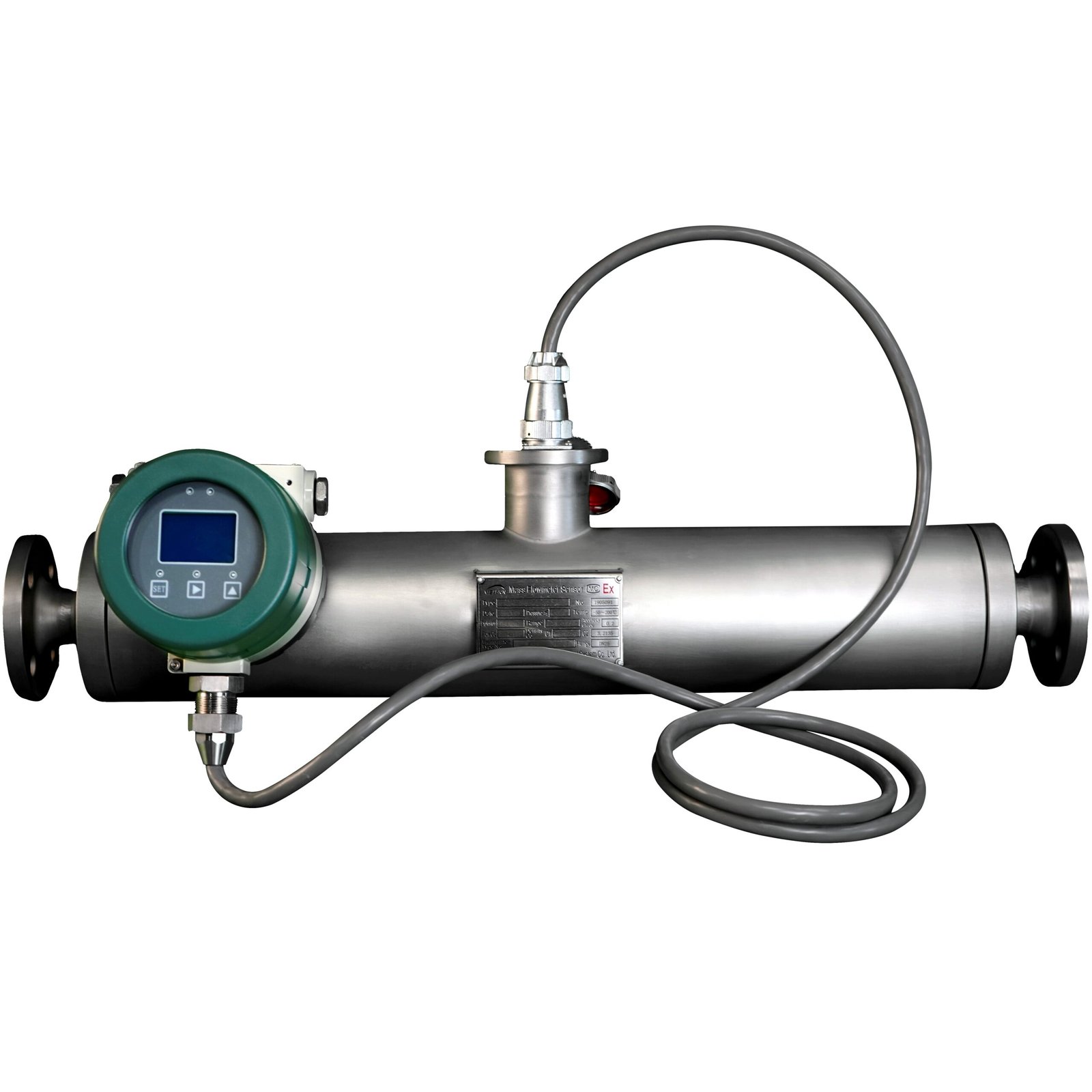

Converter Form	Separate / Integrated, Wall-Mounted
Display Data	Instantaneous Flow, Cumulative Flow, Density, Concentration
Explosion-Proof Class	Exdb[ia]IICT6Gb
Protection Class	IP67
