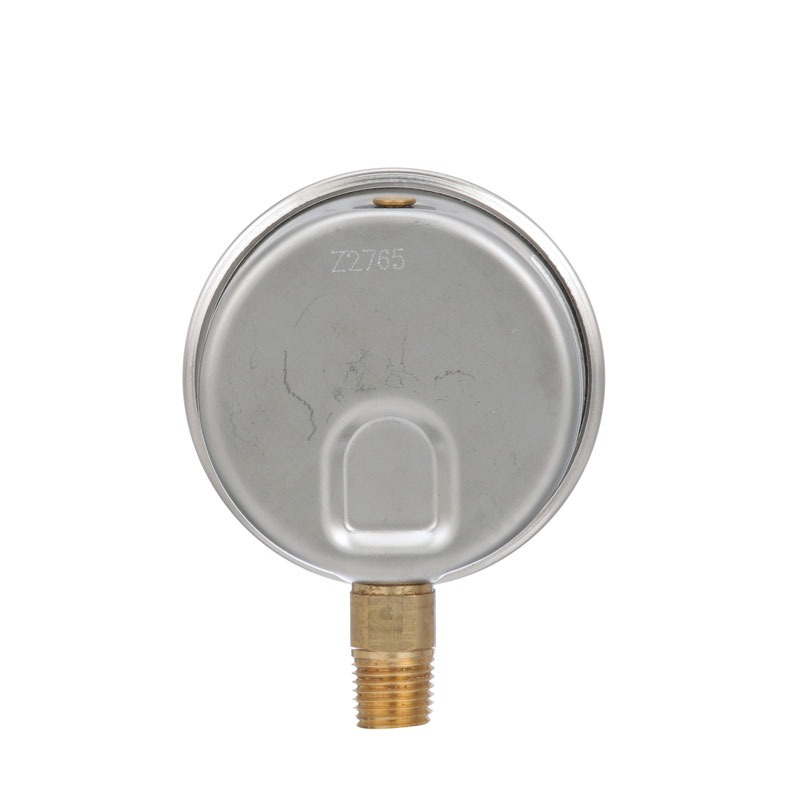

PFQ-ZR Stabilizr Stainless Steel Pressure Gauge PFQ898ZRR1 Winters Instrumentation

$70.00

Part No: PFQ898ZRR1
PFQ-ZR StabiliZR® Stainless Steel Pressure Gauge
2.5″ dial size, 30″-0-30 PSI range, featuring a dampened movement to minimize vibration and pulsation effects without liquid filling. Designed for demanding environments, including pumps and compressors.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

30″-0-30 PSI, 2.5″ StabiliZR®, 1/4″ NPT Back Connection, Stainless Steel

Feature Detail
Part Number PFQ898ZRR1
Range 30″-0-30 PSI
Dial Size 2.5” (63mm), white aluminum with black and red markings
Case AISI 304 Stainless Steel (dry)
Lens Polycarbonate
Ring Crimped-on 304 Stainless Steel
Socket Brass with restricted orifice (dual scale only)
Connection 1/4” NPT, back mounted
Bourdon Tube Bronze
Movement Brass with StabiliZR® dampened movement (silicone in sealed chamber)
Pointer Anodized black aluminum
Over-pressure Limit 25% for pressures up to 1,450 psi (9,998 kPa), 15% for higher pressures
Socket Gasket Buna N for two-piece internal socket seal
Lens Ring Gasket Silicone Rubber
Fill Plug Buna N
Accuracy ±1.5% of full scale value
Enclosure Rating IP65
Working Pressure 75% of full scale value
Ambient Temperature -76°F to 200°F (-60°C to 93°C)
Process Temperature -40°F to 200°F (-40°C to 93°C)
Compliance ASME B40.100 (EN837-1 available), CRN registered
Warranty 5 years
Applications Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment, and motors in harsh environments where harmful vibration and pulsation are present
Additional Features – StabiliZR® dampened movement minimizes effects of pulsation and vibration without liquid filling (flutterless pointer)
– Restricted orifice standard on dual scale
– Dual scale (psi/kPa)
– U-Clamps and front flanges for panel mounting
Warning This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
